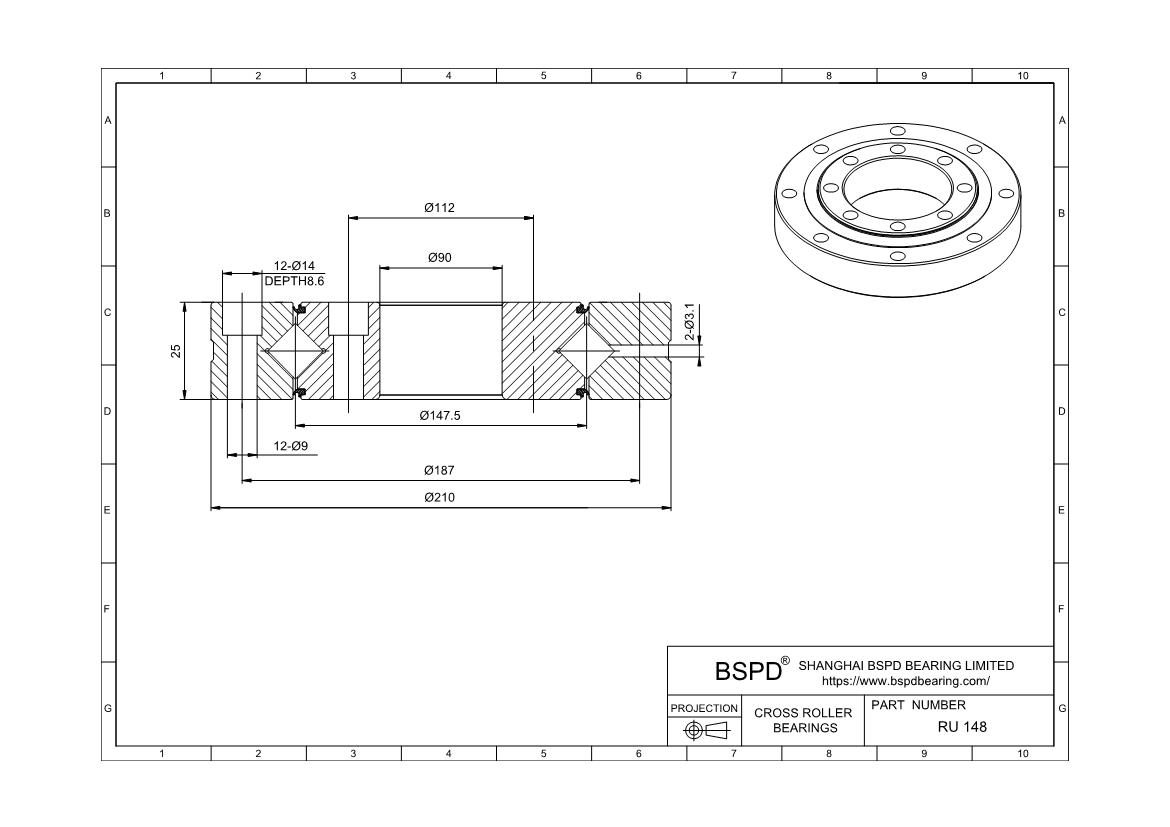

RU148UU Crossed Roller TYPE
Dimensions: Bore (Inner) Diameter: 90 mm； Outer Diameter: 210 mm； Width (Thickness): 25 mm;

RU148UU
REQUEST FOR QUOTE
* *
Send
Product Attributes
IKO Part Number CRBFV9025ATUU
THK Part Number RU148UU
Bearing Type Roller
Roller Bearing Type Crossed
For Load Direction Combined Radial; Thrust; and Moment
Construction Single Row
Seal Type Sealed
ABEC Rating ABEC-5 ABEC-7 ABEC-9
Ring Material Steel
Roller Material Steel
Shaft dia. mm 90
Mass(kg) 4.9
Bore Dia (d) 90
Outer Dia (D) 210
Width (B) 25
Greasing hole(d1)
r(min)
Shoulder height ds(max)
Shoulder height Dh(min)
Basic load rating (radial)C kN 49.1
Basic load rating (radial)Co kN 76.8
Inner ring PCD1 112
Lubrication Required
Shaft Mount Type Press Fit
Temperature Range 0 -230
Inner ring Mounting hole 12-M8 through
Outer ring PCD2 187
Outer ring Mounting hole 12-φ9 through φ14 counter bore depth 12
RU148UU
