RU124UU Crossed Roller TYPE

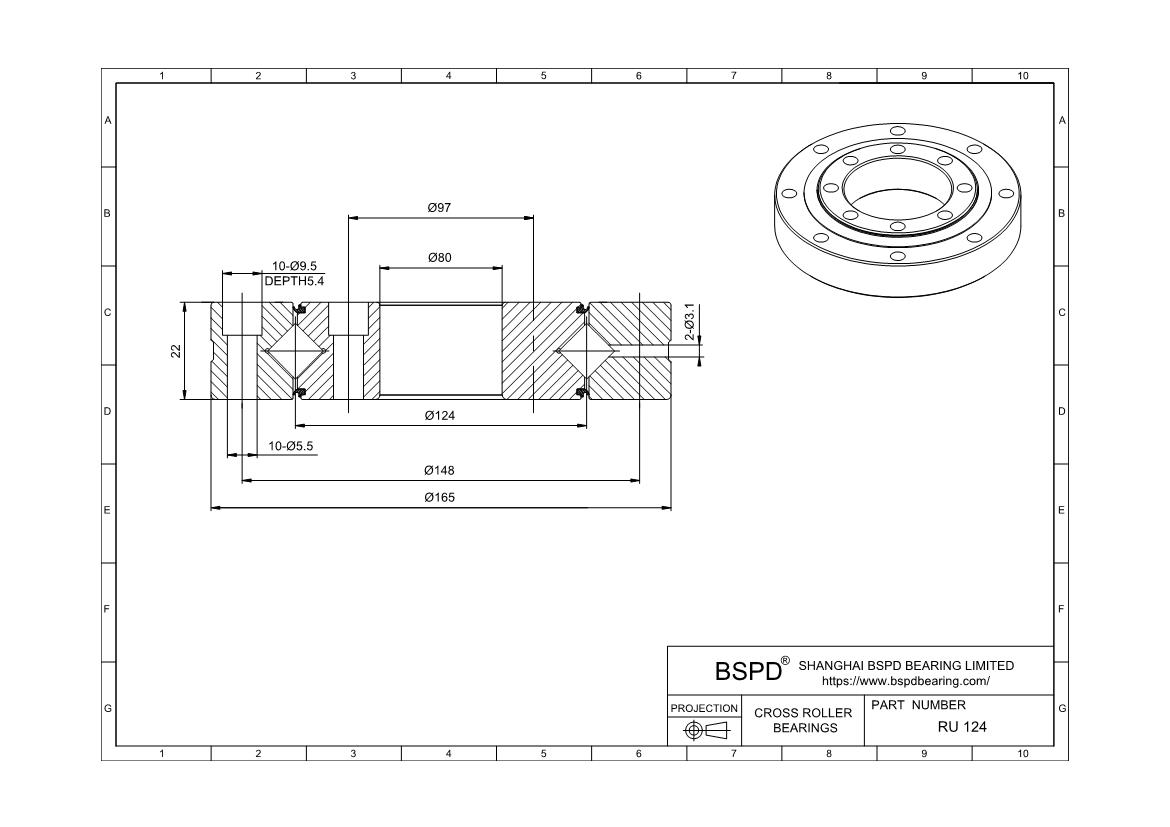

Dimensions: Bore (Inner) Diameter: 80 mm； Outer Diameter: 165 mm； Width (Thickness): 22 mm;

REQUEST FOR QUOTE

Product Attributes

IKO Part Number	CRBFV8022ATUU
THK Part Number	RU124UU
Bearing Type	Roller
Roller Bearing Type	Crossed
For Load Direction	Combined Radial; Thrust; and Moment
Construction	Single Row
Seal Type	Sealed
ABEC Rating	ABEC-5 ABEC-7 ABEC-9
Ring Material	Steel
Roller Material	Steel
Shaft dia. mm	80
Mass(kg)	2.6
Bore Dia (d)	80
Outer Dia (D)	165
Width (B)	22
Greasing hole(d1)
r(min)
Shoulder height ds(max)
Shoulder height Dh(min)
Basic load rating (radial)C kN	33.1
Basic load rating (radial)Co kN	50.9
Inner ring PCD1	97
Lubrication	Required
Shaft Mount Type	Press Fit
Temperature Range	0 -230
Inner ring Mounting hole	10-M5 through
Outer ring PCD2	148
Outer ring Mounting hole	10-φ5.5 through φ9.5 counter bore depth 5.4

Print PDF
Request a 3D CAD Model if you need special bearings - design custom bearings

What are the types of Crossed Roller Bearings RU124UU ? Crossed Roller TYPE Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:Negotiation
Price:Negotiation

Fast Delivery √
Best Quality √
Good Price √
