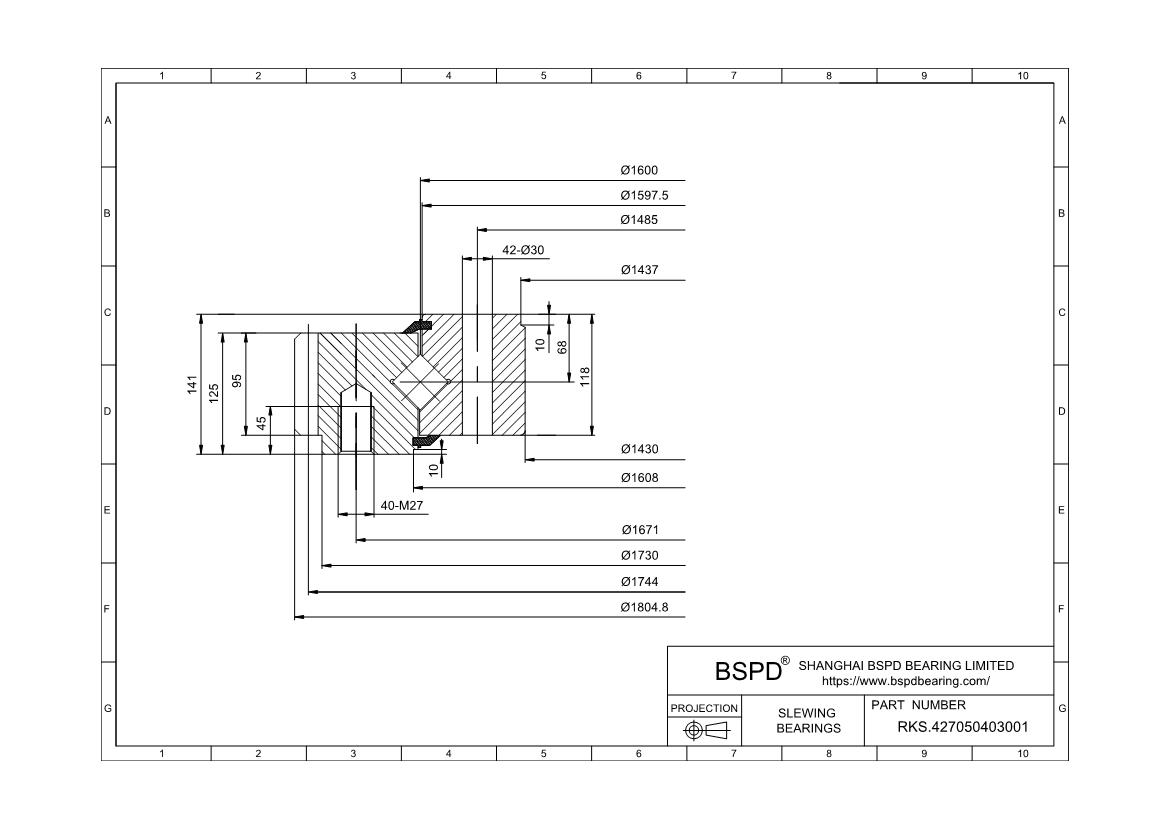

RKS.427050403001
SKF Slewing Bearings
Dimensions: Bore (Inner) Diameter: 1430 mm； Outer Diameter: 1804.8 mm； Width (Thickness): ;
REQUEST FOR QUOTE
Product Attributes
| Specifications | |
| Part Number | RKS.427050403001 |
| Gear | internal gear |
| Geometry | |
| weight | 710 |
| dm | 1 600 |
| D | 1 804,8 |
| d | 1 430 |
| H | 141 |
| H1 | 68 |
| Outer ring | |
| D1 | 1 730 |
| D2 | 1 608 |
| D3 | |
| C | 125 |
| C1 | 95 |
| inner ring | |
| d1 | 1 597,5 |
| d2 | 1 437 |
| B | 118 |
| B1 | 10 |
| De-sign | |
| Attachment bolt holes | |
| Outer ring | |
| Je | 1 671 |
| Ke | M 27 |
| Ne | 403) |
| inner ring | |
| Ji | 1 485 |
| Ki | 30 |
| Ni | 423) |
| Gear Data | |
| Gear Dimensions(d01) | 1 744 |
| Module(m) | 16 |
| Number of teeth(z) | 109 |
| x·m | 16,912 |
| k·m | 2,512 |
| Permissible tooth forces T(fnormal) | 239 |
| Permissible tooth forces T(fMAX) | 409 |
| Basic load ratings | |
| axial dynamic (C) | 1 840 |
| static (C0) | 7 560 |
| Static limitingload diagram | |
| Raceway curves | r13 |
| Bolt curves | b13 |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
