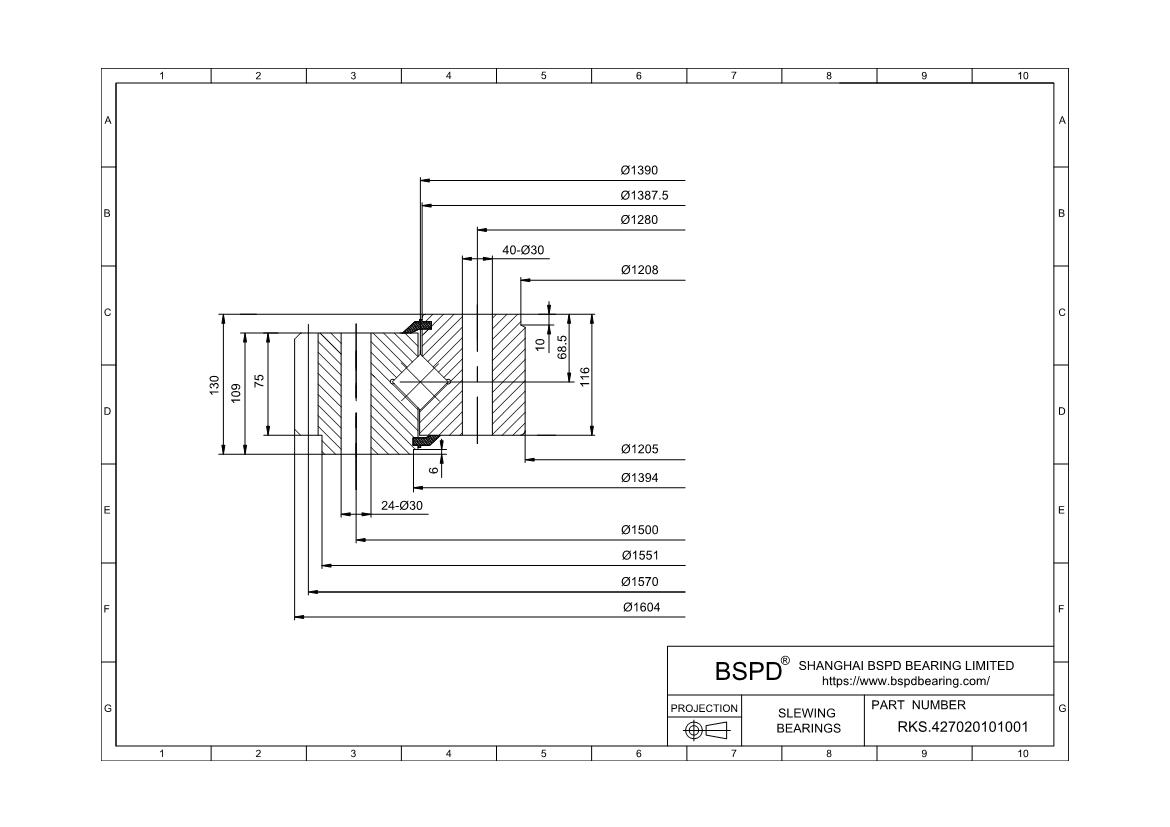

RKS.427020101001
SKF Slewing Bearings
Dimensions: Bore (Inner) Diameter: 1205 mm； Outer Diameter: 1604 mm； Width (Thickness): ;
REQUEST FOR QUOTE
Product Attributes
| Specifications | |
| Part Number | RKS.427020101001 |
| Gear | internal gear |
| Geometry | |
| weight | 620 |
| dm | 1 390 |
| D | 1 604 |
| d | 1 205 |
| H | 130 |
| H1 | 68,5 |
| Outer ring | |
| D1 | 1 551 |
| D2 | 1 394 |
| D3 | |
| C | 109 |
| C1 | 75 |
| inner ring | |
| d1 | 1 387,5 |
| d2 | 1 208 |
| B | 116 |
| B1 | 10 |
| De-sign | |
| Attachment bolt holes | |
| Outer ring | |
| Je | 1 500 |
| Ke | 30 |
| Ne | 24 |
| inner ring | |
| Ji | 1 280 |
| Ki | 30 |
| Ni | 403) |
| Gear Data | |
| Gear Dimensions(d01) | 1 570 |
| Module(m) | 10 |
| Number of teeth(z) | 157 |
| x·m | 7,5 |
| k·m | 0,5 |
| Permissible tooth forces T(fnormal) | 93 |
| Permissible tooth forces T(fMAX) | 171 |
| Basic load ratings | |
| axial dynamic (C) | 1 730 |
| static (C0) | 6 660 |
| Static limitingload diagram | |
| Raceway curves | r12 |
| Bolt curves | b12 |
