RKS.322300101001
SKF Slewing Bearings

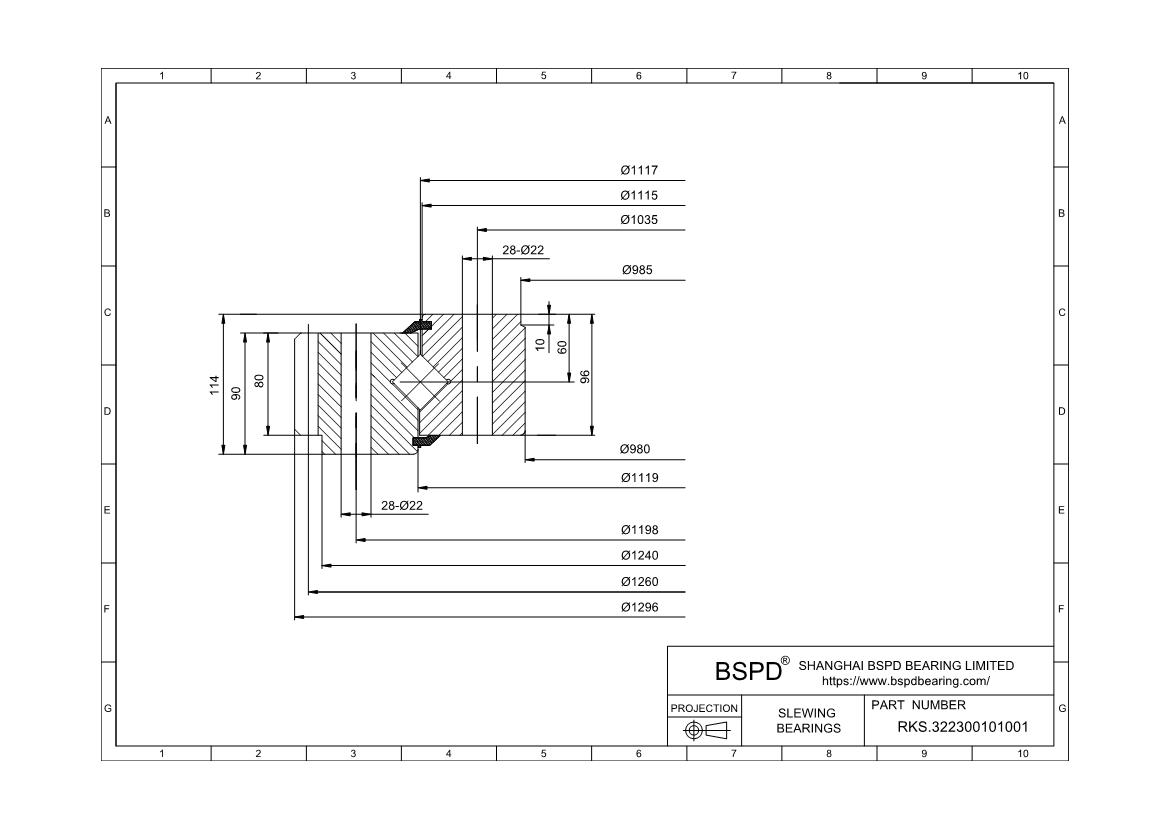

Dimensions: Bore (Inner) Diameter: 980 mm； Outer Diameter: 1296 mm； Width (Thickness): ;
REQUEST FOR QUOTE
Product Attributes
| Specifications | |
| Part Number | RKS.322300101001 |
| Gear | external gear |
| Geometry | |
| weight | 340 |
| dm | 1 117 |
| D | 1 296 |
| d | 980 |
| H | 114 |
| H1 | 60 |
| Outer ring | |
| D1 | 1 240 |
| D2 | 1 119 |
| D3 | – |
| C | 90 |
| C1 | 80 |
| inner ring | |
| d1 | 1 115 |
| d2 | 985 |
| B | 96 |
| B1 | 10 |
| De-sign | |
| Attachment bolt holes | |
| Outer ring | |
| Je | 1 198 |
| Ke | 22 |
| Ne | 28 |
| inner ring | |
| Ji | 1 035 |
| Ki | 22 |
| Ni | 28 |
| Gear Data | |
| Gear Dimensions(d01) | 1 260 |
| Module(m) | 12 |
| Number of teeth(z) | 105 |
| x·m | 7,08 |
| k·m | 1,08 |
| Permissible tooth forces T(fnormal) | 114 |
| Permissible tooth forces T(fMAX) | 210 |
| Basic load ratings | |
| axial dynamic (C) | 655 |
| static (C0) | 3 160 |
| Static limitingload diagram | |
| Raceway curves | r10 |
| Bolt curves | b10 |
