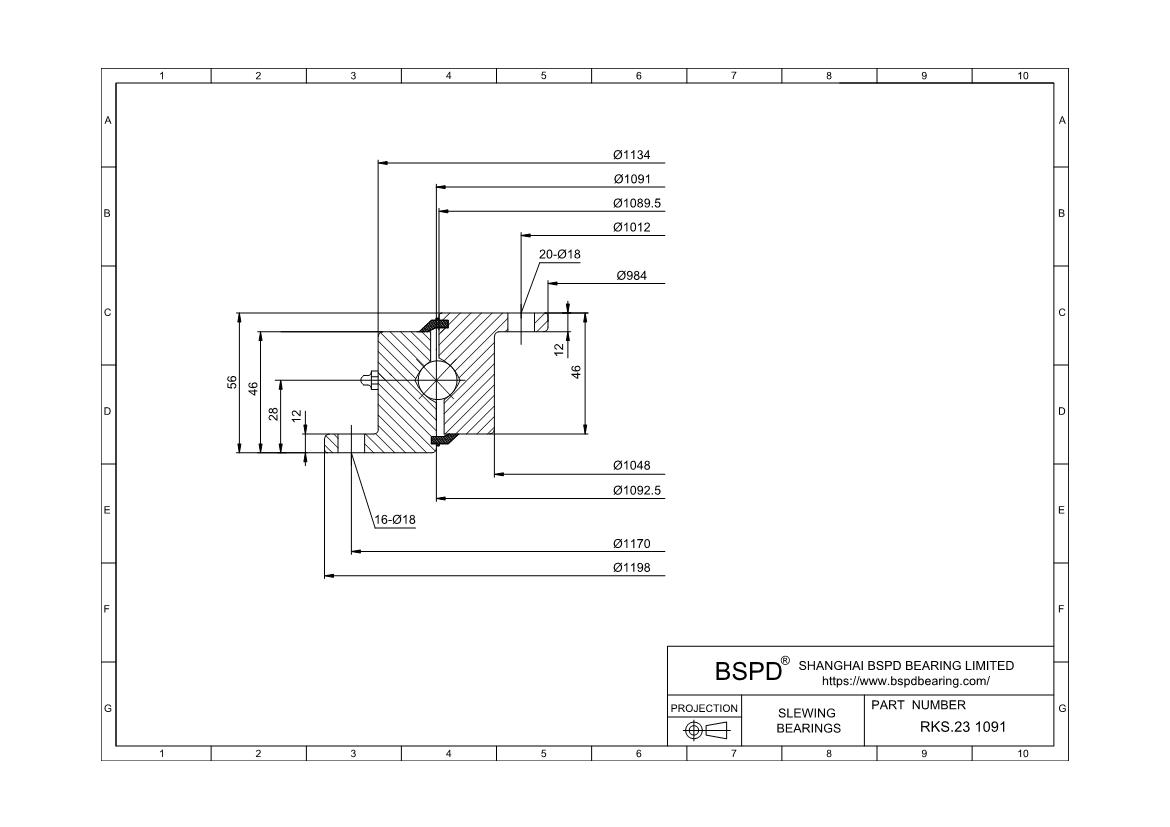

RKS.23 1091
SKF Slewing Bearings
Dimensions: Bore (Inner) Diameter: 984 mm； Outer Diameter: 1198 mm； Width (Thickness): 56mm;
REQUEST FOR QUOTE
Product Attributes
| Specifications | |
| Part Number | RKS.23 1091 |
| Gear | without a gear |
| Geometry | |
| weight | 62,0 |
| dm | 1 091 |
| D | 1 198 |
| D1 | 1 134 |
| D2 | 1 092,5 |
| d | 984 |
| d1 | 1 048 |
| d2 | 1 089,5 |
| Attachment bolt holes | |
| Outer ring | |
| Je | 1 170 |
| Ke | 18 |
| Ne | 16 |
| inner ring | |
| Ji | 1 012 |
| Ki | 18 |
| Ni | 20 |
| Basic load ratings | |
| axial dynamic (C) | 244 |
| static (C0) | 766 |
| Static limitingload diagram | |
| Raceway curves | r7 |
| Bolt curves | b7 |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Slewing Bearings RKS.23 1091 ? SKF Slewing Bearings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
