RKS.23 0641
SKF Slewing Bearings

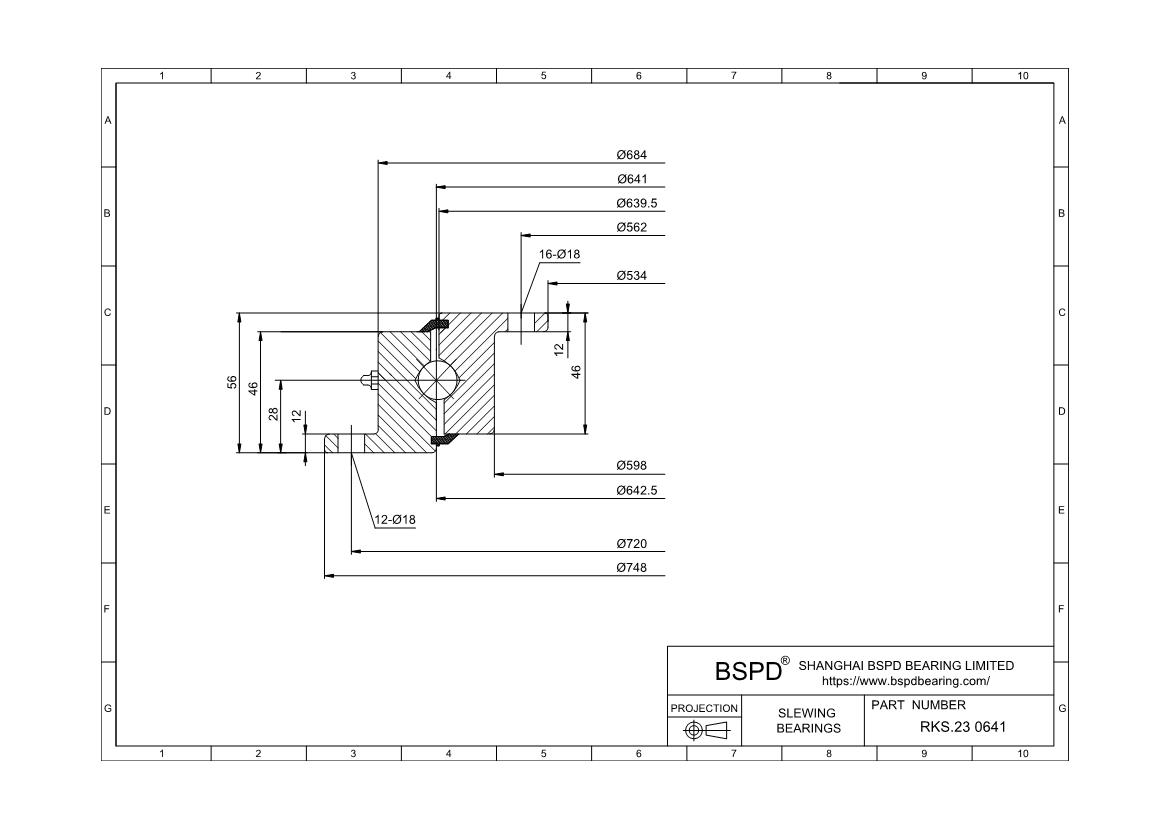

Dimensions: Bore (Inner) Diameter: 534 mm； Outer Diameter: 748 mm； Width (Thickness): 56mm;
REQUEST FOR QUOTE
Product Attributes
| Specifications | |
| Part Number | RKS.23 0641 |
| Gear | without a gear |
| Geometry | |
| weight | 36,5 |
| dm | 641 |
| D | 748 |
| D1 | 684 |
| D2 | 642,5 |
| d | 534 |
| d1 | 598 |
| d2 | 639,5 |
| Attachment bolt holes | |
| Outer ring | |
| Je | 720 |
| Ke | 18 |
| Ne | 12 |
| inner ring | |
| Ji | 562 |
| Ki | 18 |
| Ni | 16 |
| Basic load ratings | |
| axial dynamic (C) | 200 |
| static (C0) | 440 |
| Static limitingload diagram | |
| Raceway curves | r3 |
| Bolt curves | b3 |
Print PDF
Request a 3D CAD Model
