RKS.23 0411
SKF Slewing Bearings

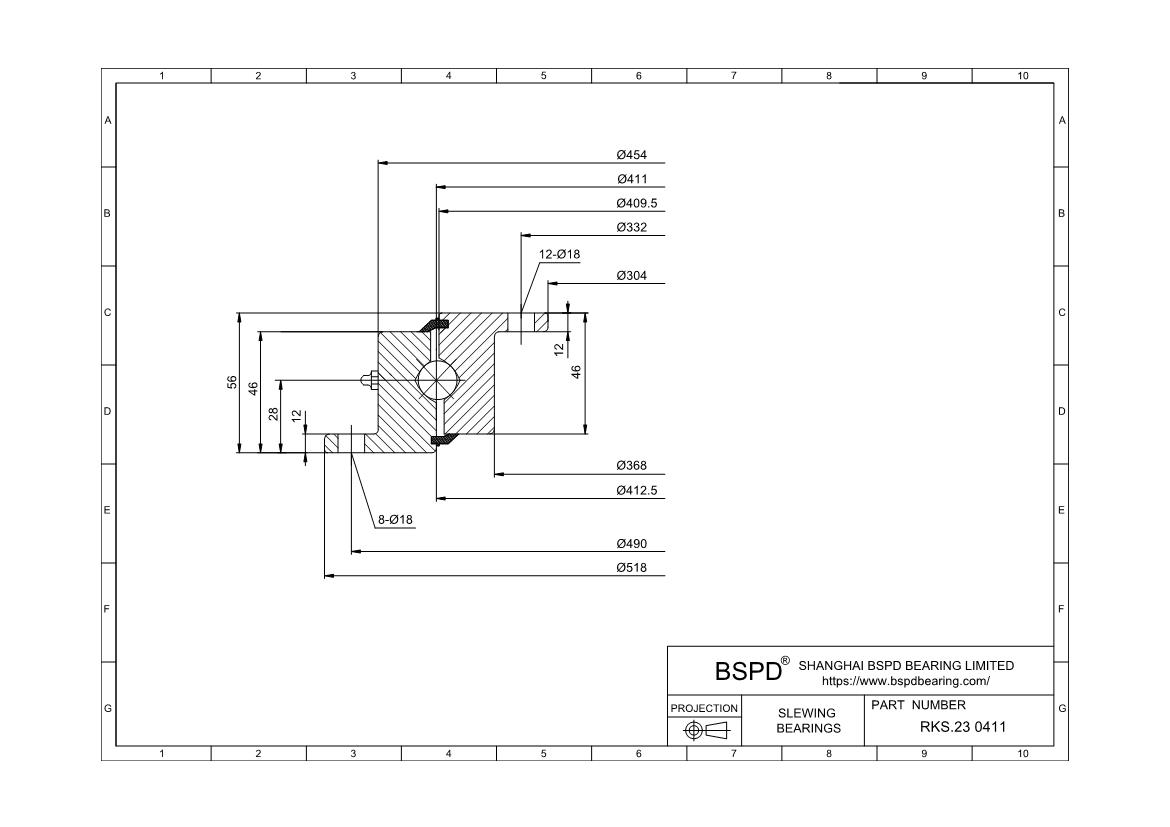

Dimensions: Bore (Inner) Diameter: 304 mm； Outer Diameter: 518 mm； Width (Thickness): 56mm;
REQUEST FOR QUOTE
Product Attributes
| Specifications | |
| Part Number | RKS.23 0411 |
| Gear | without a gear |
| Geometry | |
| weight | 23,5 |
| dm | 411 |
| D | 518 |
| D1 | 454 |
| D2 | 412,5 |
| d | 304 |
| d1 | 368 |
| d2 | 409,5 |
| Attachment bolt holes | |
| Outer ring | |
| Je | 490 |
| Ke | 18 |
| Ne | 8 |
| inner ring | |
| Ji | 332 |
| Ki | 18 |
| Ni | 12 |
| Basic load ratings | |
| axial dynamic (C) | 169 |
| static (C0) | 284 |
| Static limitingload diagram | |
| Raceway curves | r1 |
| Bolt curves | b1 |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Slewing Bearings RKS.23 0411 ? SKF Slewing Bearings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
- Fast Delivery √
- Best Quality √
- Good Price √
