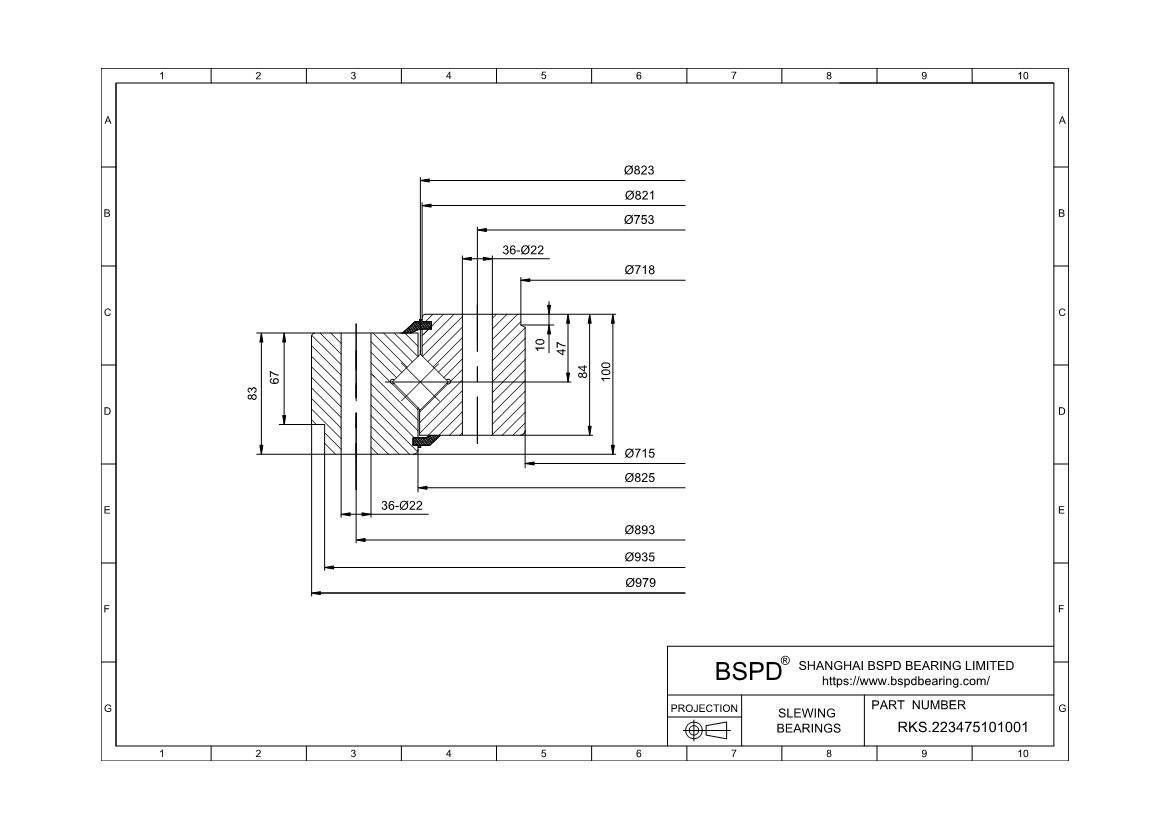

RKS.223475101001
SKF Slewing Bearings
Dimensions: Bore (Inner) Diameter: 715 mm; Outer Diameter: 979 mm; Width (Thickness): ;
REQUEST FOR QUOTE
Product Attributes
Specifications | |
Part Number | RKS.223475101001 |
Gear | without a gear |
Geometry | |
weight | 195 |
dm | 823 |
D | 979 |
d | 715 |
H | 100 |
H1 | 47 |
Outer ring | |
D1 | 935 |
D2 | 825 |
D3 | |
C | 83 |
C1 | 67 |
inner ring | |
d1 | 821 |
d2 | 718 |
B | 84 |
B1 | 10 |
De-sign | |
Attachment bolt holes | |
Outer ring | |
Je | 893 |
Ke | 22 |
Ne | 36 |
inner ring | |
Ji | 753 |
Ki | 22 |
Ni | 36 |
Gear Data | |
Gear Dimensions(d01) | |
Module(m) | |
Number of teeth(z) | |
x·m | |
k·m | |
Permissible tooth forces T(fnormal) | |
Permissible tooth forces T(fMAX) | |
Basic load ratings | |
axial dynamic (C) | 709 |
static (C0) | 2 790 |
Static limitingload diagram | |
Raceway curves | r5 |
Bolt curves | b5 |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
