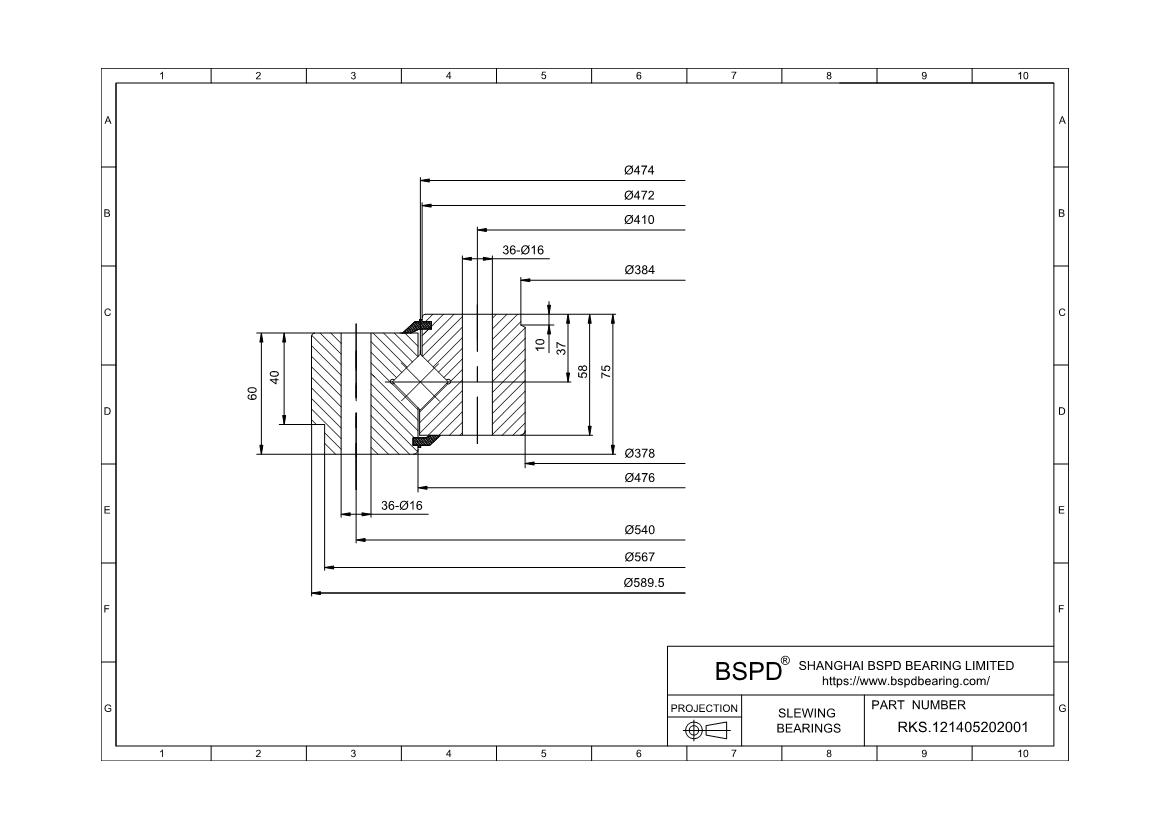

RKS.121405202001
SKF Slewing Bearings
Dimensions: Bore (Inner) Diameter: 378 mm； Outer Diameter: 589.5 mm； Width (Thickness): ;
REQUEST FOR QUOTE
Product Attributes
| Specifications | |
| Part Number | RKS.121405202001 |
| Gear | without a gear |
| Geometry | |
| weight | 64,0 |
| dm | 474 |
| D | 589,5 |
| d | 378 |
| H | 75 |
| H1 | 37 |
| Outer ring | |
| D1 | 567 |
| D2 | 476 |
| D3 | |
| C | 60 |
| C1 | 40 |
| inner ring | |
| d1 | 472 |
| d2 | 384 |
| B | 58 |
| B1 | 10 |
| De-sign | |
| Attachment bolt holes | |
| Outer ring | |
| Je | 540 |
| Ke | 16 |
| Ne | 36 |
| inner ring | |
| Ji | 410 |
| Ki | 16 |
| Ni | 361) |
| Gear Data | |
| Gear Dimensions(d01) | |
| Module(m) | |
| Number of teeth(z) | |
| x·m | |
| k·m | |
| Permissible tooth forces T(fnormal) | |
| Permissible tooth forces T(fMAX) | |
| Basic load ratings | |
| axial dynamic (C) | 304 |
| static (C0) | 1 050 |
| Static limitingload diagram | |
| Raceway curves | r2 |
| Bolt curves | b2 |
