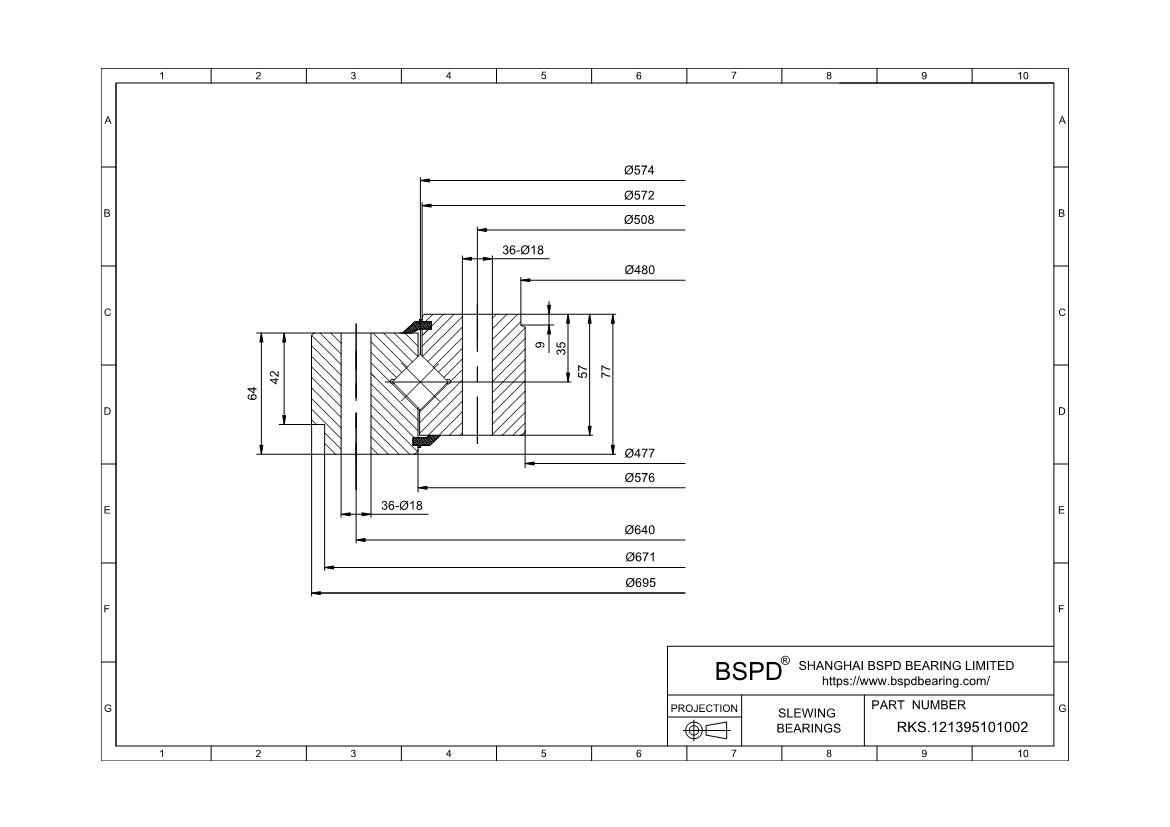

RKS.121395101002
SKF Slewing Bearings
Dimensions: Bore (Inner) Diameter: 477 mm； Outer Diameter: 695 mm； Width (Thickness): ;
REQUEST FOR QUOTE
Product Attributes
| Specifications | |
| Part Number | RKS.121395101002 |
| Gear | without a gear |
| Geometry | |
| weight | 84,0 |
| dm | 574 |
| D | 695 |
| d | 477 |
| H | 77 |
| H1 | 35 |
| Outer ring | |
| D1 | 671 |
| D2 | 576 |
| D3 | |
| C | 64 |
| C1 | 42 |
| inner ring | |
| d1 | 572 |
| d2 | 480 |
| B | 57 |
| B1 | 9 |
| De-sign | |
| Attachment bolt holes | |
| Outer ring | |
| Je | 640 |
| Ke | 18 |
| Ne | 36 |
| inner ring | |
| Ji | 508 |
| Ki | 18 |
| Ni | 361) |
| Gear Data | |
| Gear Dimensions(d01) | |
| Module(m) | |
| Number of teeth(z) | |
| x·m | |
| k·m | |
| Permissible tooth forces T(fnormal) | |
| Permissible tooth forces T(fMAX) | |
| Basic load ratings | |
| axial dynamic (C) | 339 |
| static (C0) | 1 280 |
| Static limitingload diagram | |
| Raceway curves | r3 |
| Bolt curves | b3 |
