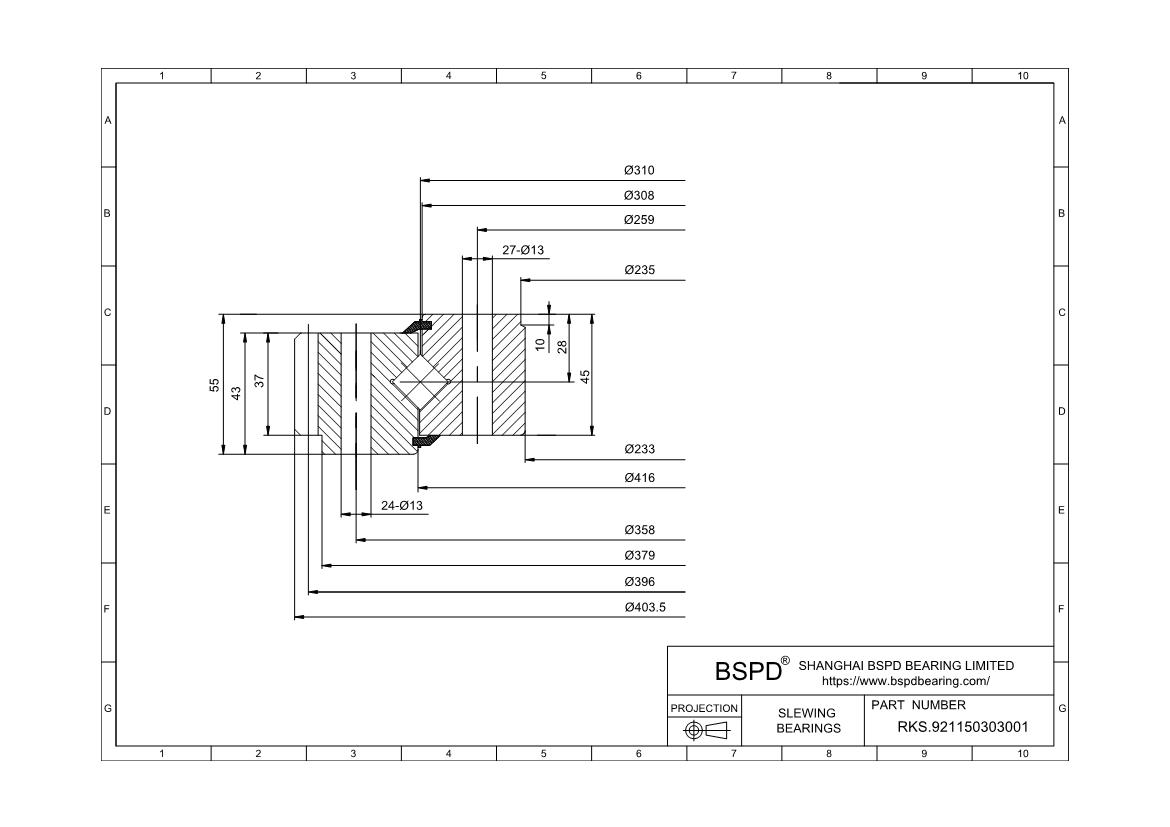

RKS.921150303001
SKF Slewing Bearings
Dimensions: Bore (Inner) Diameter: 233 mm； Outer Diameter: 403.5 mm； Width (Thickness): ;
REQUEST FOR QUOTE
Product Attributes
| Specifications | |
| Part Number | RKS.921150303001 |
| Gear | external gear |
| Geometry | |
| weight | 24,0 |
| dm | 310 |
| D | 403,5 |
| d | 233 |
| H | 55 |
| H1 | 28 |
| Outer ring | |
| D1 | 379 |
| D2 | 312 |
| D3 | |
| C | 43 |
| C1 | 37 |
| inner ring | |
| d1 | 308 |
| d2 | 235 |
| B | 45 |
| B1 | 10 |
| De-sign | |
| Attachment bolt holes | |
| Outer ring | |
| Je | 358 |
| Ke | 13 |
| Ne | 24 |
| inner ring | |
| Ji | 259 |
| Ki | 13 |
| Ni | 273) |
| Gear Data | |
| Gear Dimensions(d01) | 396 |
| Module(m) | 4,5 |
| Number of teeth(z) | 88 |
| x·m | |
| k·m | 0,752 |
| Permissible tooth forces T(fnormal) | 17 |
| Permissible tooth forces T(fMAX) | 35 |
| Basic load ratings | |
| axial dynamic (C) | 245 |
| static (C0) | 697 |
| Static limitingload diagram | |
| Raceway curves | r1 |
| Bolt curves | b1 |
