RKS.302070202001
SKF Slewing Bearings

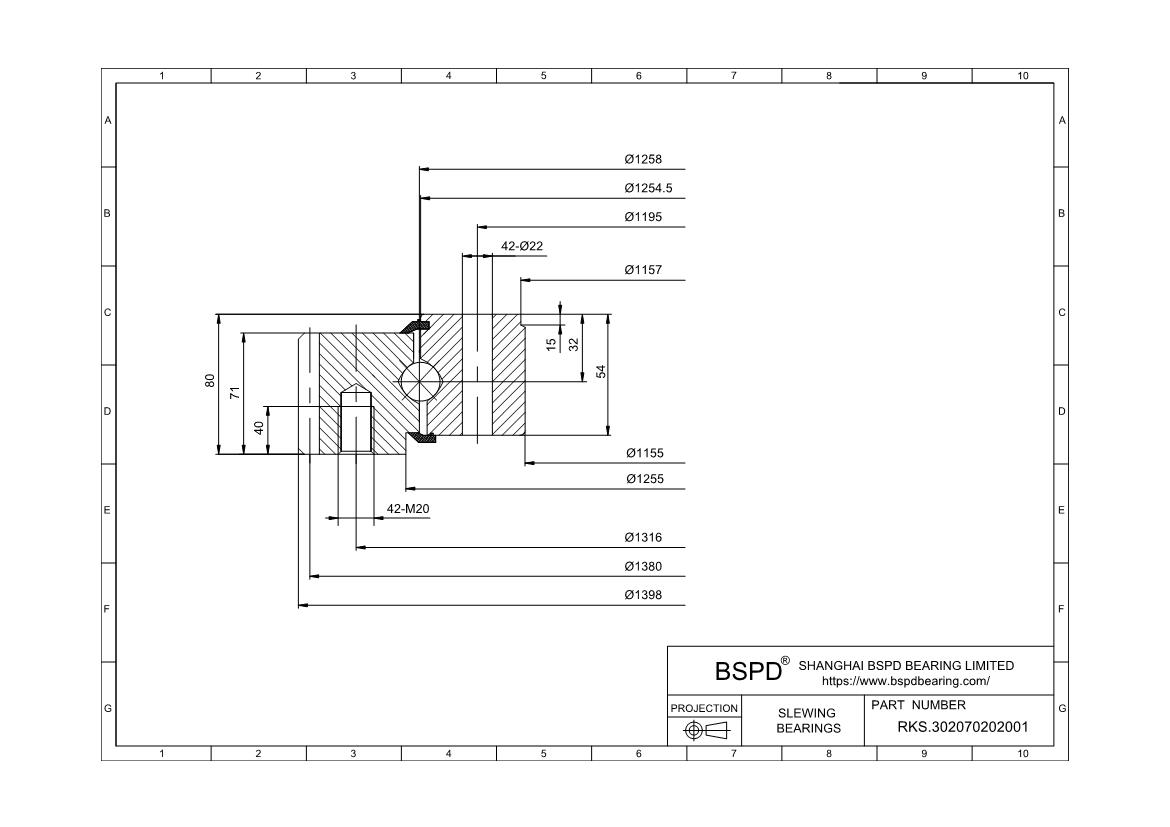

Dimensions: Bore (Inner) Diameter: 1155 mm； Outer Diameter: 1398 mm； Width (Thickness): 80 mm;
REQUEST FOR QUOTE
Product Attributes
| Specifications | |
| Part Number | RKS.302070202001 |
| Gear | external gear |
| Geometry | |
| weight | 205 |
| dm | 1 258 |
| D | 1 398 |
| D1 | |
| d | 1 155 |
| d1 | |
| H | 80 |
| H1 | 32 |
| Outer ring | |
| D1 | – |
| D2 | 1 255 |
| C | 71 |
| C1 | – |
| inner ring | |
| d1 | 1 157 |
| d2 | 1 254,5 |
| B | 54 |
| B1 | 15 |
| De-sign | |
| Attachment bolt holes | |
| Outer ring | |
| Je | 1 316 |
| Ke | M 20 |
| Ne | 42 |
| inner ring | |
| Ji | 1 195 |
| Ki | 22 |
| Ni | 42 |
| Gear Data | |
| Gear Dimensions(d01) | 1 380 |
| Module(m) | 10 |
| Number of teeth(z) | 138 |
| x·m | |
| k·m | 1 |
| Permissible tooth forces T(fnormal) | 73 |
| Permissible tooth forces T(fMAX) | 145 |
| Basic load ratings | |
| axial dynamic (C) | 449 |
| static (C0) | 3 960 |
| Static limitingload diagram | |
| Raceway curves | r2 |
| Bolt curves | b2 |
