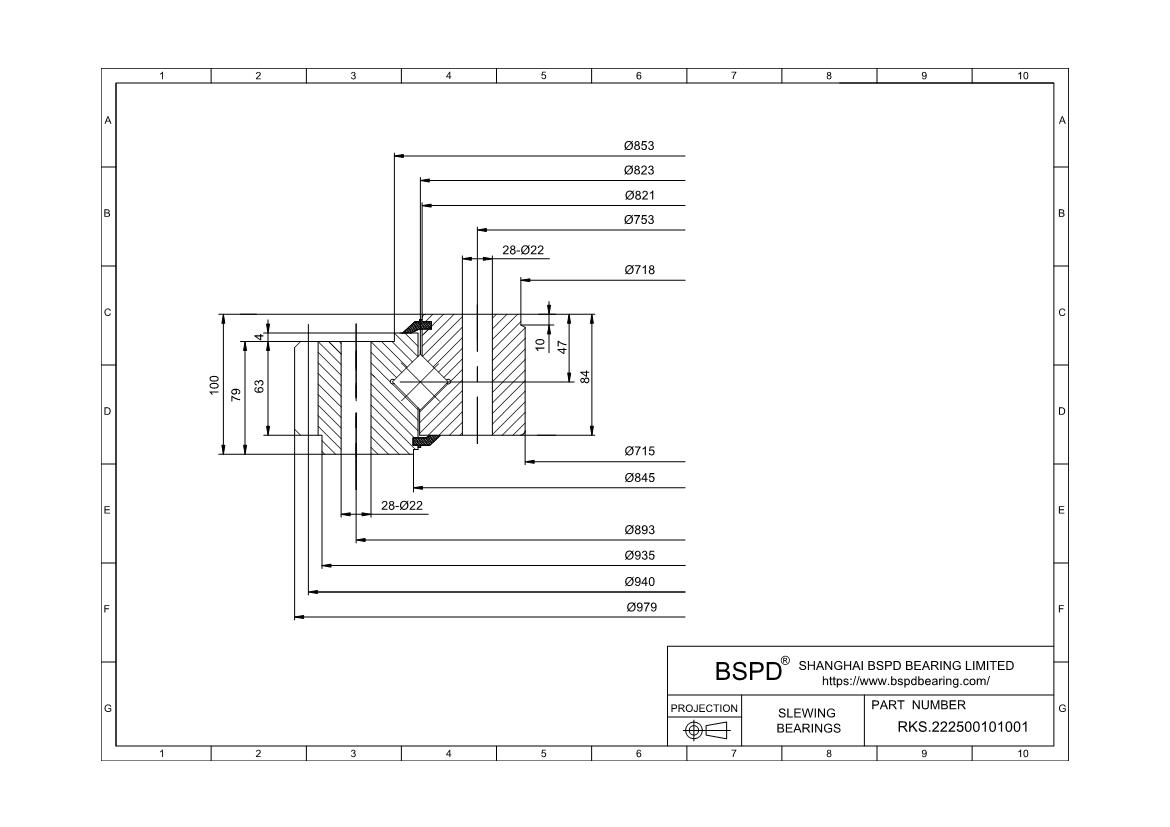

RKS.222500101001
SKF Slewing Bearings
Dimensions: Bore (Inner) Diameter: 715 mm； Outer Diameter: 979 mm； Width (Thickness): ;
REQUEST FOR QUOTE
Product Attributes
| Specifications | |
| Part Number | RKS.222500101001 |
| Gear | external gear |
| Geometry | |
| weight | 180 |
| dm | 823 |
| D | 979 |
| d | 715 |
| H | 100 |
| H1 | 47 |
| Outer ring | |
| D1 | 935 |
| D2 | 845 |
| D3 | 853 |
| C | 79 |
| C1 | 63 |
| inner ring | |
| d1 | 821 |
| d2 | 718 |
| B | 84 |
| B1 | 10 |
| De-sign | |
| Attachment bolt holes | |
| Outer ring | |
| Je | 893 |
| Ke | 22 |
| Ne | 283) |
| inner ring | |
| Ji | 753 |
| Ki | 22 |
| Ni | 283) |
| Gear Data | |
| Gear Dimensions(d01) | 940 |
| Module(m) | 10 |
| Number of teeth(z) | 94 |
| x·m | 11 |
| k·m | 1,5 |
| Permissible tooth forces T(fnormal) | 74 |
| Permissible tooth forces T(fMAX) | 136 |
| Basic load ratings | |
| axial dynamic (C) | 558 |
| static (C0) | 2 330 |
| Static limitingload diagram | |
| Raceway curves | r6 |
| Bolt curves | b6 |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Slewing Bearings RKS.222500101001 ? SKF Slewing Bearings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
- Fast Delivery √
- Best Quality √
- Good Price √
