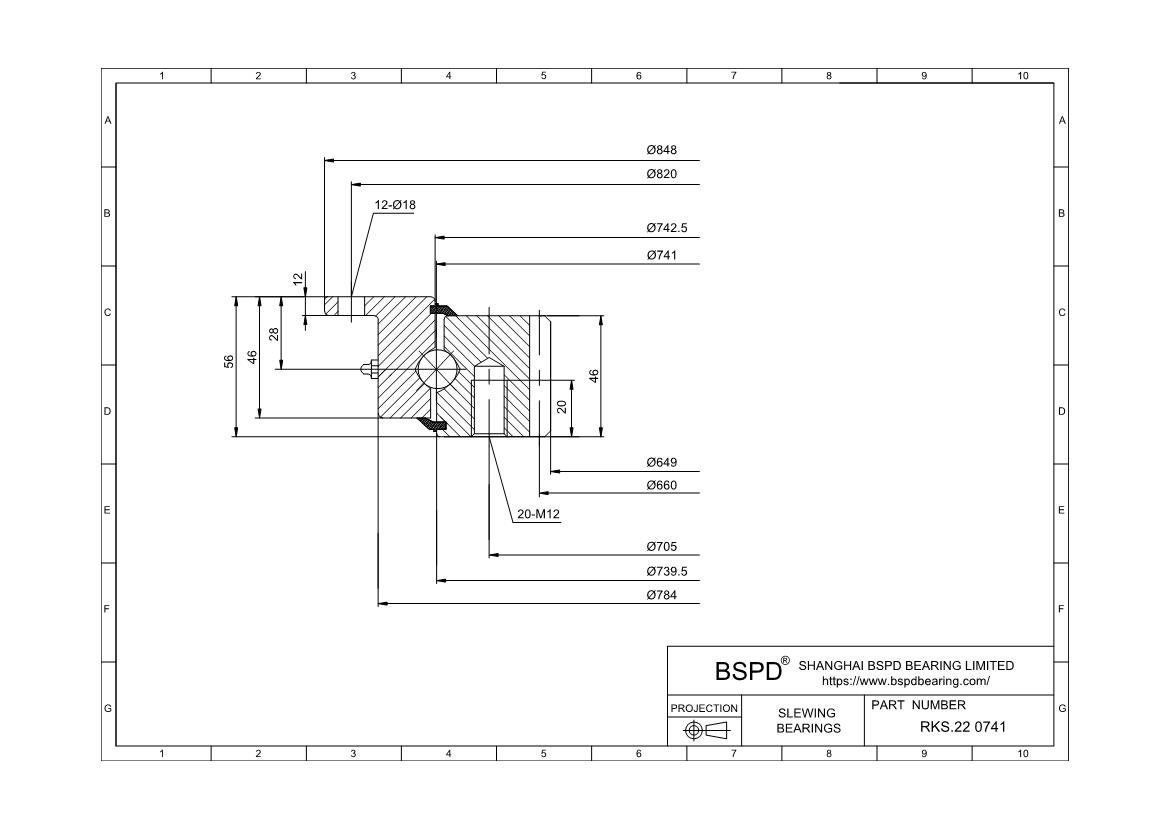

RKS.22 0741
SKF Slewing Bearings
Dimensions: Bore (Inner) Diameter: 649 mm； Outer Diameter: 848 mm； Width (Thickness): ;
REQUEST FOR QUOTE
Product Attributes
| Specifications | |
| Part Number | RKS.22 0741 |
| Gear | internal gear |
| Geometry | |
| weight | 55,0 |
| dm | 741 |
| D | 848 |
| D1 | 784 |
| D2 | 742,5 |
| d | 649 |
| d2 | 739,5 |
| Attachment bolt holes | |
| Outer ring | |
| Je | 820 |
| Ke | 18 |
| Ne | 12 |
| inner ring | |
| Ji | 705 |
| Ki | M 12 |
| Ni | 20 |
| Gear Data | |
| Gear Dimensions(d01) | 660 |
| Module(m) | 6 |
| Number of teeth(z) | 110 |
| Permissible tooth forces T(fnormal) | 16 |
| Permissible tooth forces T(fMAX) | 65 |
| Basic load ratings | |
| axial dynamic (C) | 211 |
| static (C0) | 524 |
| Static limitingload diagram | |
| Raceway curves | r4 |
| Bolt curves | b4 |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Slewing Bearings RKS.22 0741 ? SKF Slewing Bearings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
