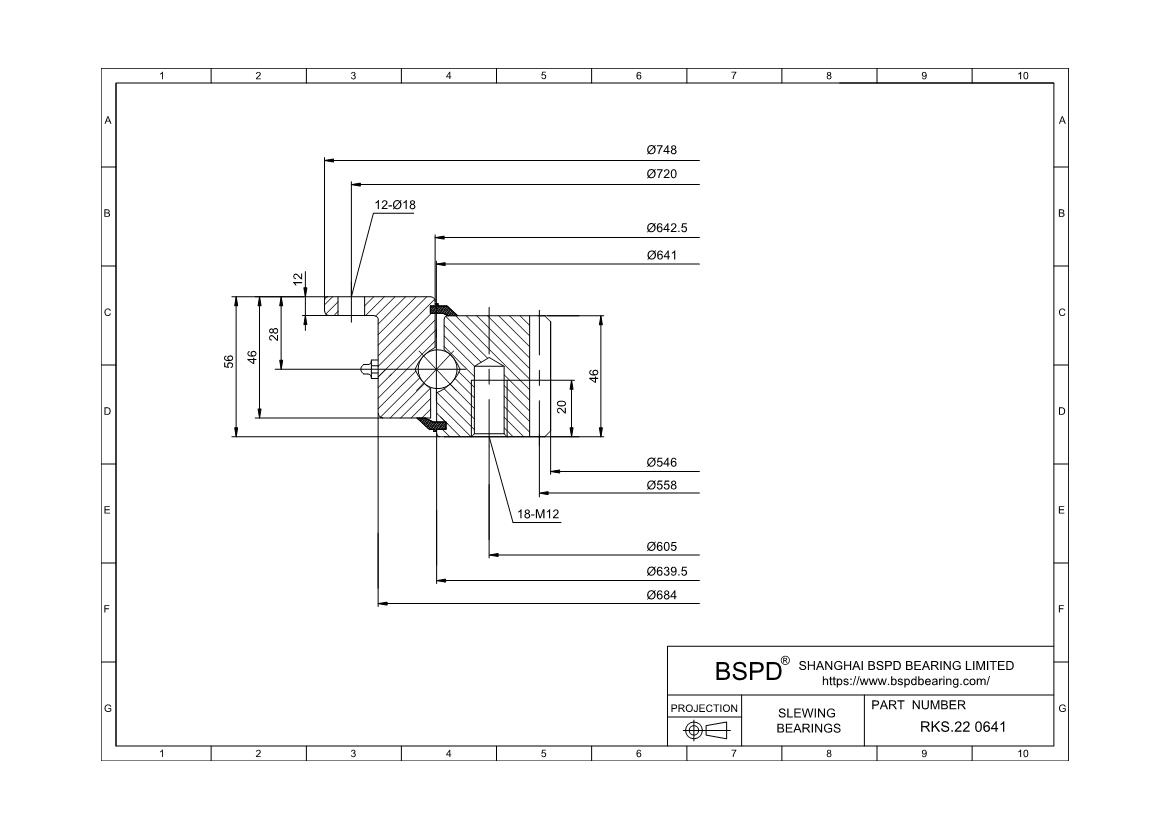

RKS.22 0641
SKF Slewing Bearings
Dimensions: Bore (Inner) Diameter: 546 mm； Outer Diameter: 748 mm； Width (Thickness): ;
REQUEST FOR QUOTE
Product Attributes
| Specifications | |
| Part Number | RKS.22 0641 |
| Gear | internal gear |
| Geometry | |
| weight | 48,0 |
| dm | 641 |
| D | 748 |
| D1 | 684 |
| D2 | 642,5 |
| d | 546 |
| d2 | 639,5 |
| Attachment bolt holes | |
| Outer ring | |
| Je | 720 |
| Ke | 18 |
| Ne | 12 |
| inner ring | |
| Ji | 605 |
| Ki | M 12 |
| Ni | 18 |
| Gear Data | |
| Gear Dimensions(d01) | 558 |
| Module(m) | 6 |
| Number of teeth(z) | 93 |
| Permissible tooth forces T(fnormal) | 16 |
| Permissible tooth forces T(fMAX) | 65 |
| Basic load ratings | |
| axial dynamic (C) | 200 |
| static (C0) | 440 |
| Static limitingload diagram | |
| Raceway curves | r3 |
| Bolt curves | b3 |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Slewing Bearings RKS.22 0641 ? SKF Slewing Bearings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
