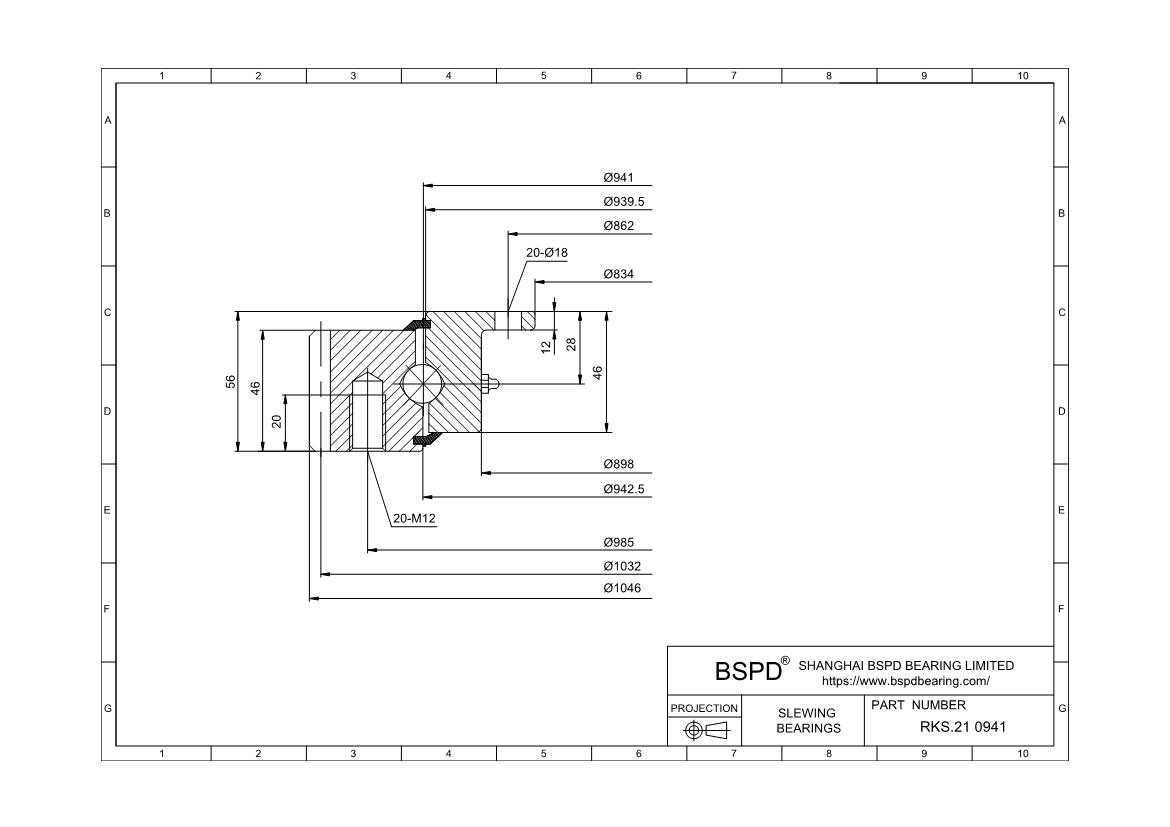

RKS.21 0941
SKF Slewing Bearings
Dimensions: Bore (Inner) Diameter: 834 mm； Outer Diameter: 1046 mm； Width (Thickness): ;
REQUEST FOR QUOTE
Product Attributes
| Specifications | |
| Part Number | RKS.21 0941 |
| Gear | external gear |
| Geometry | |
| weight | 76,0 |
| dm | 941 |
| D | 1 046 |
| D2 | 942,5 |
| d | 834 |
| d1 | 898 |
| d2 | 939,5 |
| Attachment bolt holes | |
| Outer ring | |
| Je | 985 |
| Ke | M 12 |
| Ne | 20 |
| inner ring | |
| Ji | 862 |
| Ki | 18 |
| Ni | 20 |
| Gear Data | |
| Gear Dimensions(d01) | 1 032 |
| Module(m) | 8 |
| Number of teeth(z) | 129 |
| Permissible tooth forces T(fnormal) | 21 |
| Permissible tooth forces T(fMAX) | 72 |
| Basic load ratings | |
| axial dynamic (C) | 231 |
| static (C0) | 664 |
| Static limitingload diagram | |
| Raceway curves | r6 |
| Bolt curves | b6 |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Slewing Bearings RKS.21 0941 ? SKF Slewing Bearings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
