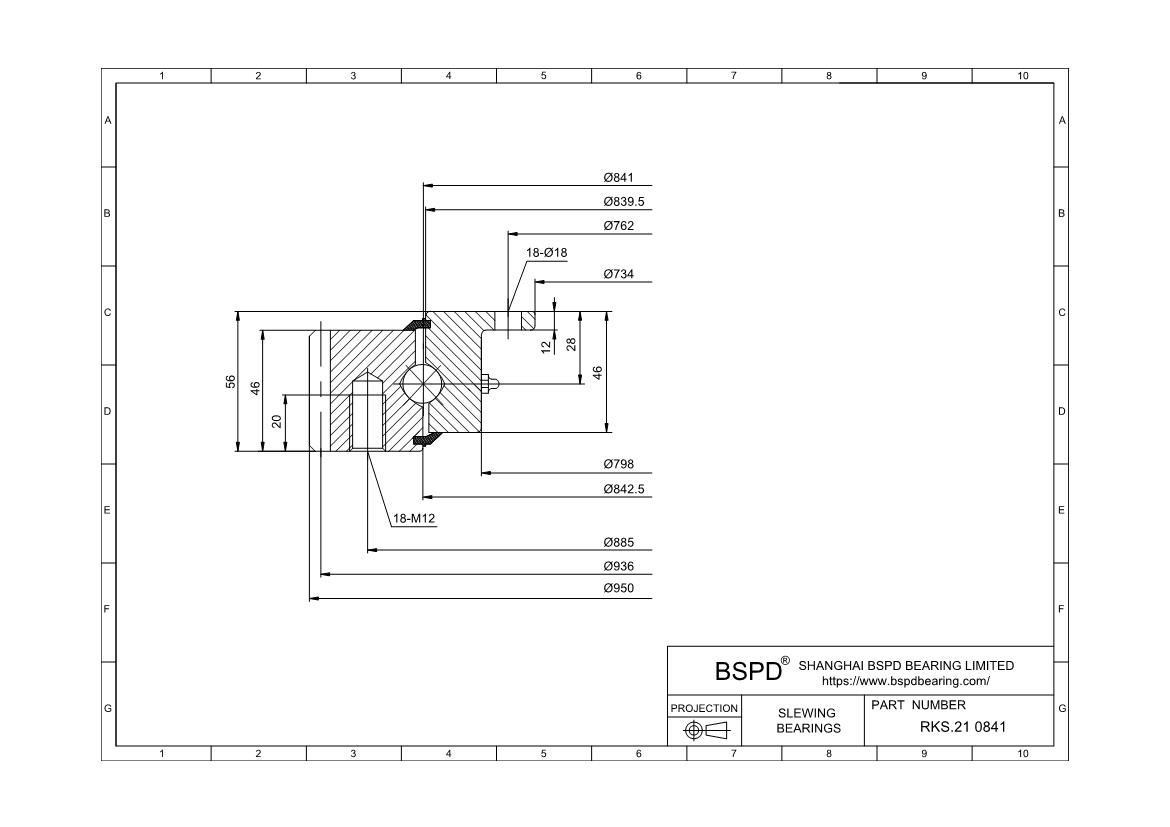

RKS.21 0841
SKF Slewing Bearings
Dimensions: Bore (Inner) Diameter: 734 mm； Outer Diameter: 950 mm； Width (Thickness): ;
REQUEST FOR QUOTE
Product Attributes
| Specifications | |
| Part Number | RKS.21 0841 |
| Gear | external gear |
| Geometry | |
| weight | 68,0 |
| dm | 841 |
| D | 950 |
| D2 | 842,5 |
| d | 734 |
| d1 | 798 |
| d2 | 839,5 |
| Attachment bolt holes | |
| Outer ring | |
| Je | 885 |
| Ke | M 12 |
| Ne | 18 |
| inner ring | |
| Ji | 762 |
| Ki | 18 |
| Ni | 18 |
| Gear Data | |
| Gear Dimensions(d01) | 936 |
| Module(m) | 8 |
| Number of teeth(z) | 117 |
| Permissible tooth forces T(fnormal) | 21 |
| Permissible tooth forces T(fMAX) | 72 |
| Basic load ratings | |
| axial dynamic (C) | 222 |
| static (C0) | 580 |
| Static limitingload diagram | |
| Raceway curves | r5 |
| Bolt curves | b5 |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Slewing Bearings RKS.21 0841 ? SKF Slewing Bearings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
