RKS.21 0411
SKF Slewing Bearings
Dimensions: Bore (Inner) Diameter: 304 mm； Outer Diameter: 505 mm； Width (Thickness): ;
REQUEST FOR QUOTE
Product Attributes
| Specifications | |
| Part Number | RKS.21 0411 |
| Gear | external gear |

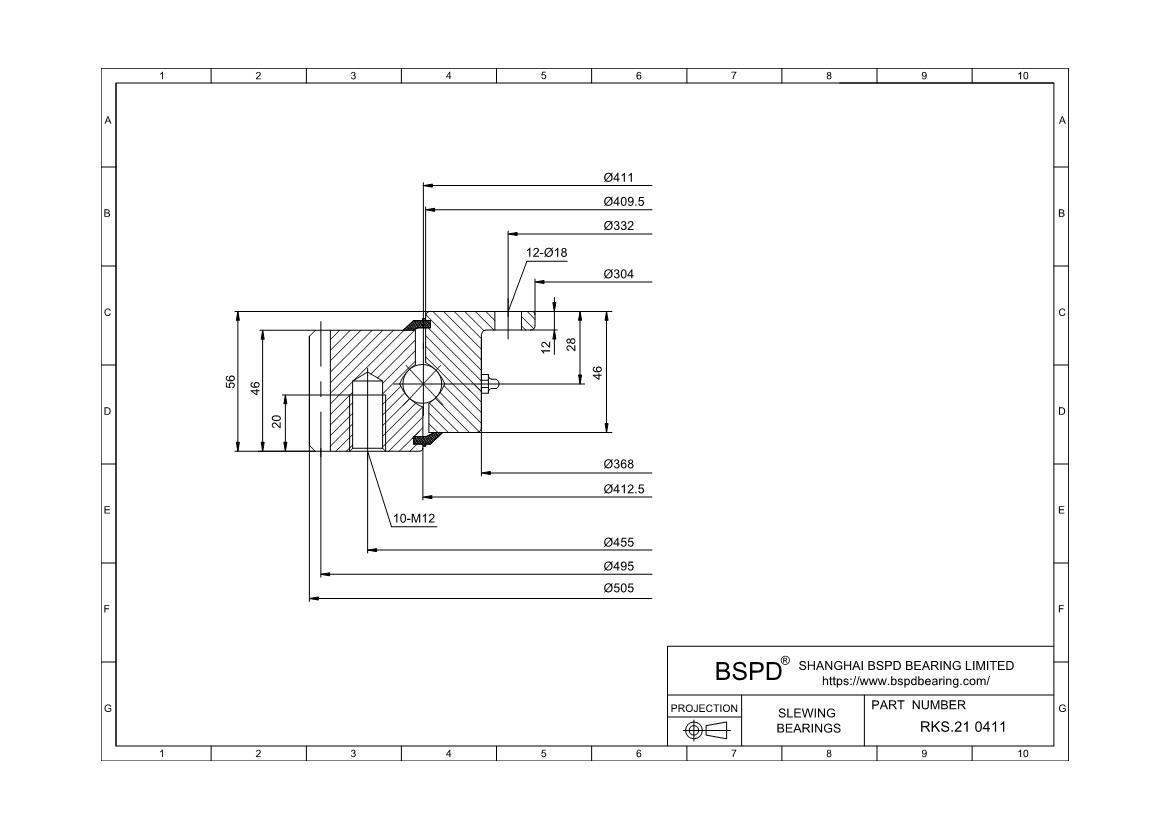

| Geometry | |
| weight | 32,0 kg |
| dm | 411 |
| D | 505 |
| D2 | 412,5 |
| d | 304 |
| d1 | 368 |
| d2 | 409,5 |
| Attachment bolt holes | |
| Outer ring | |
| Je | 455 mm |
| Ke | M 12 |
| Ne | 10 |
| inner ring | |
| Ji | 332 mm |
| Ki | 18 |
| Ni | 12 |
| Gear Data | |
| Gear Dimensions(d01) | 495 mm |
| Module(m) | 5 |
| Number of teeth(z) | 99 |
| Permissible tooth forces T(fnormal) | 12 KN |
| Permissible tooth forces T(fMAX) | 46 |
| Basic load ratings | |
| axial dynamic (C) | 169 KN |
| static (C0) | 284 |
| Static limitingload diagram | |
| Raceway curves | r1 |
| Bolt curves | b1 |
