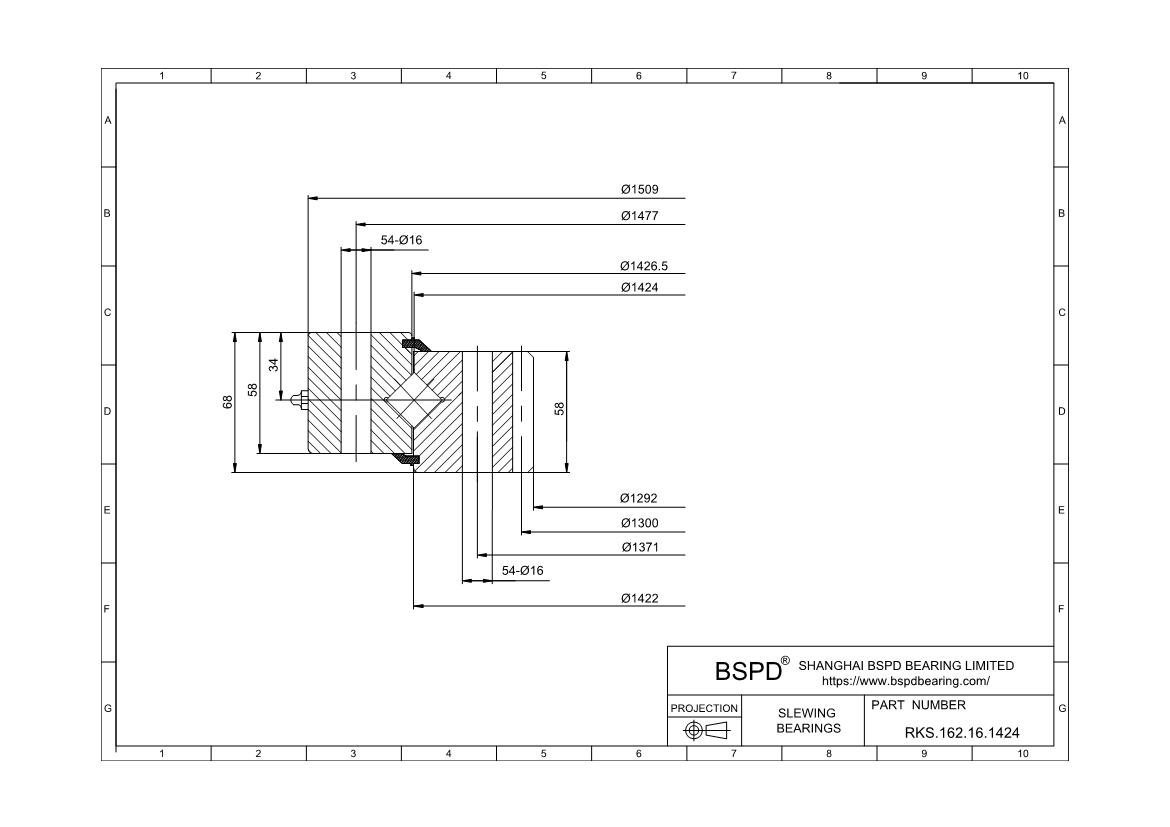

RKS.162.16.1424
SKF Slewing Bearings
Dimensions: Bore (Inner) Diameter: 1292 mm； Outer Diameter: 1509 mm； Width (Thickness): 68mm;
REQUEST FOR QUOTE
Product Attributes
| Specifications | |
| Part Number | RKS.162.16.1424 |
| Gear | internal gear |
| Geometry | |
| weight | 175 |
| dm | 1 424 |
| D | 1 509 |
| D1 | 1 426,5 |
| d | 1 292 |
| d1 | 1 422 |
| Attachment bolt holes | |
| Outer ring | |
| Je | 1 477 |
| Ke | 16 |
| Ne | 54 |
| inner ring | |
| Ji | 1 371 |
| Ki | 16 |
| Ni | 54 |
| Gear Data | |
| Gear Dimensions(d01) | 1 300 |
| Module(m) | 10 |
| Number of teeth(z) | 130 |
| x·m | +0,5 |
| k·m | –1 |
| Permissible tooth forces T(fnormal) | 48 |
| Permissible tooth forces T(fMAX) | 169 |
| Basic load ratings | |
| axial dynamic (C) | 439 |
| static (C0) | 2 580 |
| Static limitingload diagram | |
| Raceway curves | r3 |
| Bolt curves | b3 |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Slewing Bearings RKS.162.16.1424 ? SKF Slewing Bearings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
