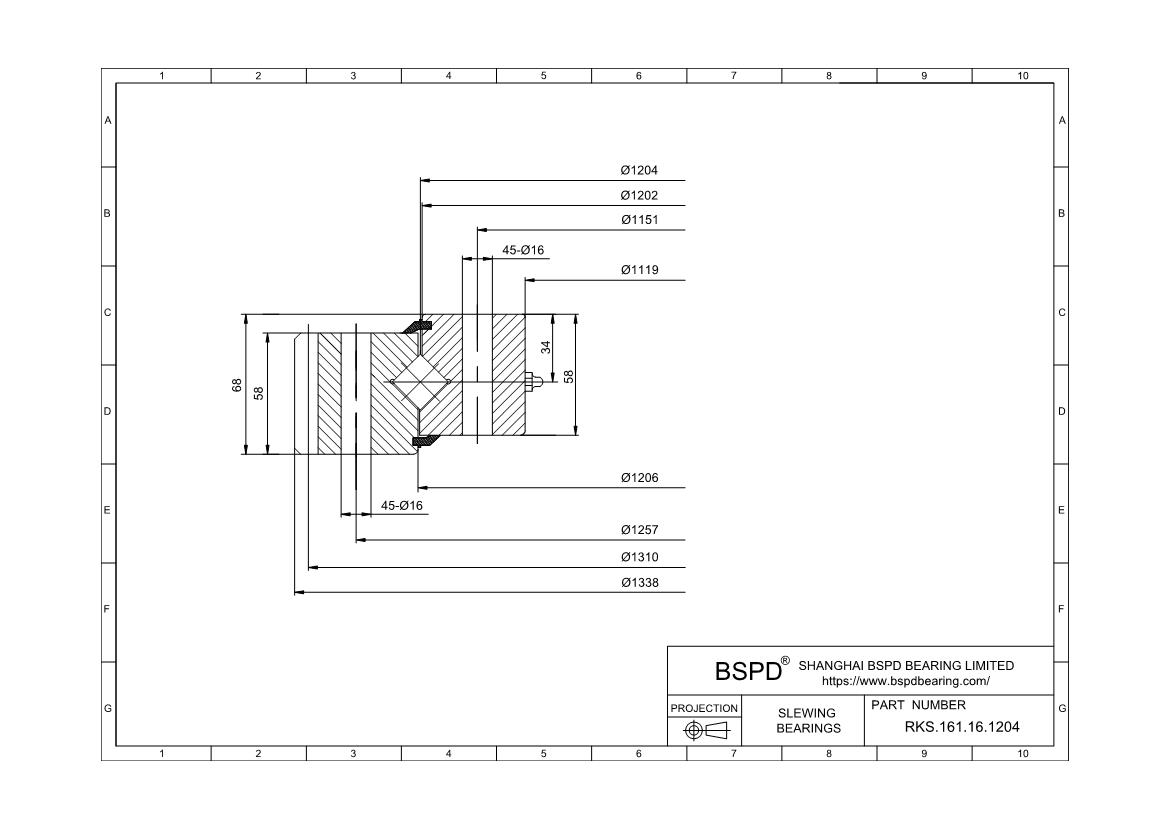

RKS.161.16.1204
SKF Slewing Bearings
Dimensions: Bore (Inner) Diameter: 1119 mm； Outer Diameter: 1338 mm； Width (Thickness): 68mm;
REQUEST FOR QUOTE
Product Attributes
| Specifications | |
| Part Number | RKS.161.16.1204 |
| Gear | external gear |
| Geometry | |
| weight | 155 |
| dm | 1 204 |
| D | 1 338 |
| D1 | 1 206 |
| d | 1 119 |
| d1 | 1 202 |
| Attachment bolt holes | |
| Outer ring | |
| Je | 1 257 |
| Ke | 16 |
| Ne | 45 |
| inner ring | |
| Ji | 1 151 |
| Ki | 16 |
| Ni | 45 |
| Gear Data | |
| Gear Dimensions(d01) | 1 310 |
| Module(m) | 10 |
| Number of teeth(z) | 131 |
| x·m | +5 |
| k·m | –1 |
| Permissible tooth forces T(fnormal) | 45 |
| Permissible tooth forces T(fMAX) | 130 |
| Basic load ratings | |
| axial dynamic (C) | 402 |
| static (C0) | 1 900 |
| Static limitingload diagram | |
| Raceway curves | r1 |
| Bolt curves | b1 |
