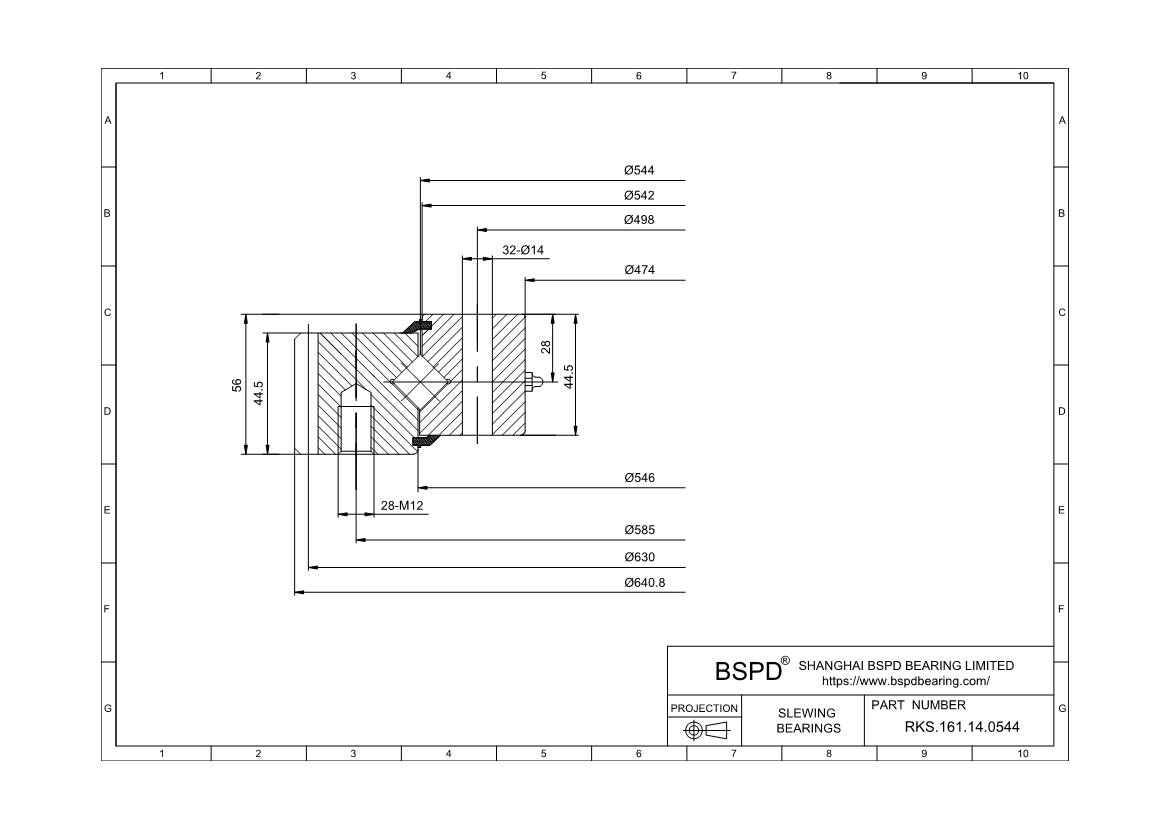

RKS.161.14.0544
SKF Slewing Bearings
Dimensions: Bore (Inner) Diameter: 474 mm； Outer Diameter: 640.8 mm； Width (Thickness): 56mm;
REQUEST FOR QUOTE
Product Attributes
| Specifications | |
| Part Number | RKS.161.14.0544 |
| Gear | external gear |
| Geometry | |
| weight | 44,0 |
| dm | 544 |
| D | 640,8 |
| D1 | 546 |
| d | 474 |
| d1 | 542 |
| Attachment bolt holes | |
| Outer ring | |
| Je | 585 |
| Ke | M 12 |
| Ne | 28 |
| inner ring | |
| Ji | 498 |
| Ki | 14 |
| Ni | 32 |
| Gear Data | |
| Gear Dimensions(d01) | 630 |
| Module(m) | 6 |
| Number of teeth(z) | 105 |
| x·m | |
| k·m | –0,6 |
| Permissible tooth forces T(fnormal) | 16 |
| Permissible tooth forces T(fMAX) | 54 |
| Basic load ratings | |
| axial dynamic (C) | 194 |
| static (C0) | 784 |
| Static limitingload diagram | |
| Raceway curves | r2 |
| Bolt curves | b2 |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Slewing Bearings RKS.161.14.0544 ? SKF Slewing Bearings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
