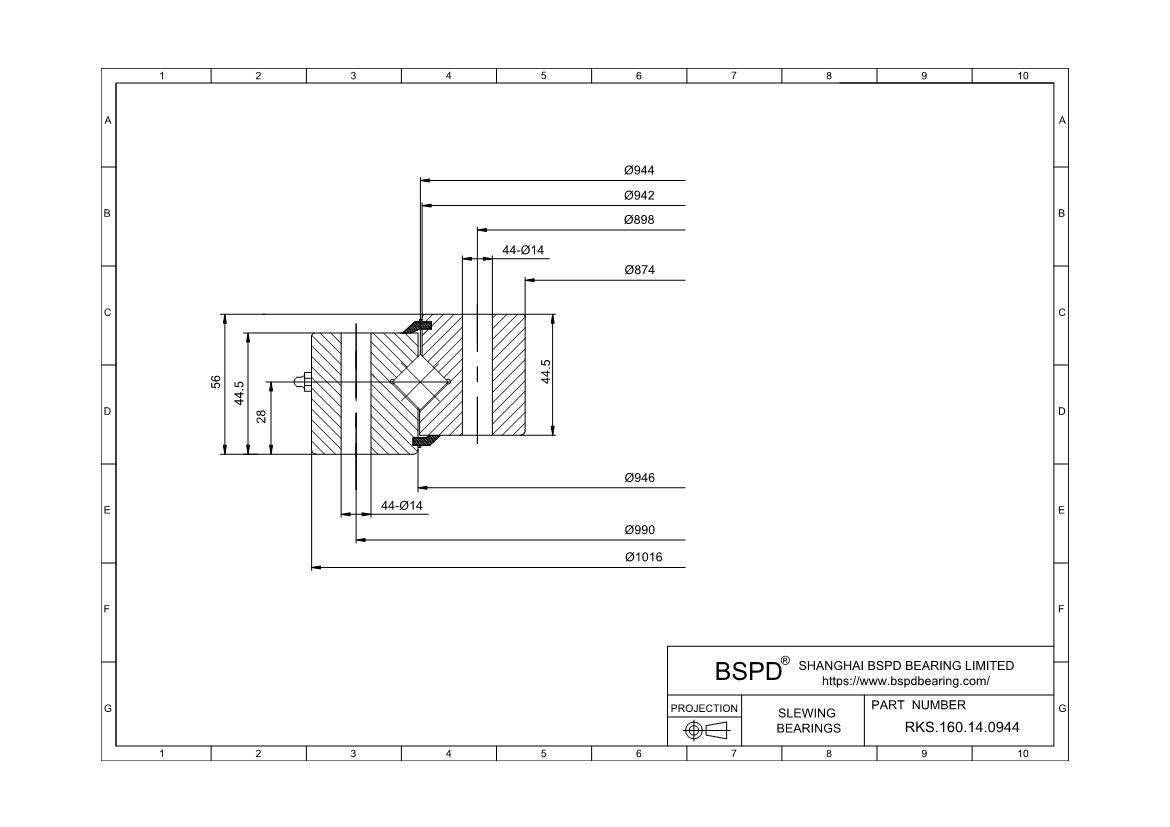

RKS.160.14.0944
SKF Slewing Bearings
Dimensions: Bore (Inner) Diameter: 874 mm； Outer Diameter: 1016 mm； Width (Thickness): 56mm;
REQUEST FOR QUOTE
Product Attributes
| Specifications | |
| Part Number | RKS.160.14.0944 |
| Gear | without a gear |
| Geometry | |
| weight | 67,0 |
| dm | 944 |
| D | 1016 |
| D1 | 946 |
| d | 874 |
| d1 | 942 |
| Attachment bolt holes | |
| Outer ring | |
| Je | 990 |
| Ke | 14 |
| Ne | 44 |
| inner ring | |
| Ji | 898 |
| Ki | 14 |
| Ni | 44 |
| Basic load ratings | |
| axial dynamic (C) | 258 |
| static (C0) | 1 250 |
| Static limitingload diagram | |
| Raceway curves | r6 |
| Bolt curves | b6 |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Slewing Bearings RKS.160.14.0944 ? SKF Slewing Bearings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
