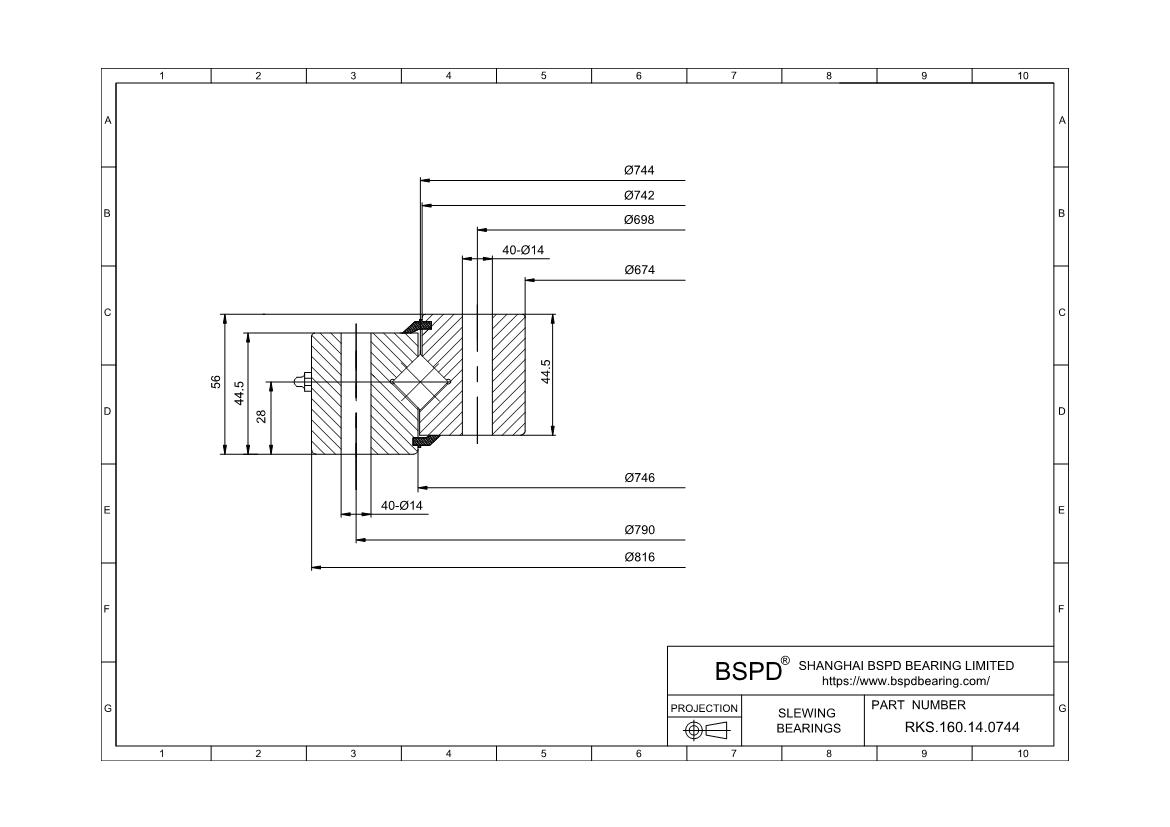

RKS.160.14.0744
SKF Slewing Bearings
Dimensions: Bore (Inner) Diameter: 674 mm； Outer Diameter: 816 mm； Width (Thickness): 56mm;
REQUEST FOR QUOTE
Product Attributes
| Specifications | |
| Part Number | RKS.160.14.0744 |
| Gear | without a gear |
| Geometry | |
| weight | 52,0 |
| dm | 744 |
| D | 816 |
| D1 | 746 |
| d | 674 |
| d1 | 742 |
| Attachment bolt holes | |
| Outer ring | |
| Je | 790 |
| Ke | 14 |
| Ne | 40 |
| inner ring | |
| Ji | 698 |
| Ki | 14 |
| Ni | 40 |
| Basic load ratings | |
| axial dynamic (C) | 228 |
| static (C0) | 1 070 |
| Static limitingload diagram | |
| Raceway curves | r4 |
| Bolt curves | b4 |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Slewing Bearings RKS.160.14.0744 ? SKF Slewing Bearings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
- Fast Delivery √
- Best Quality √
- Good Price √
