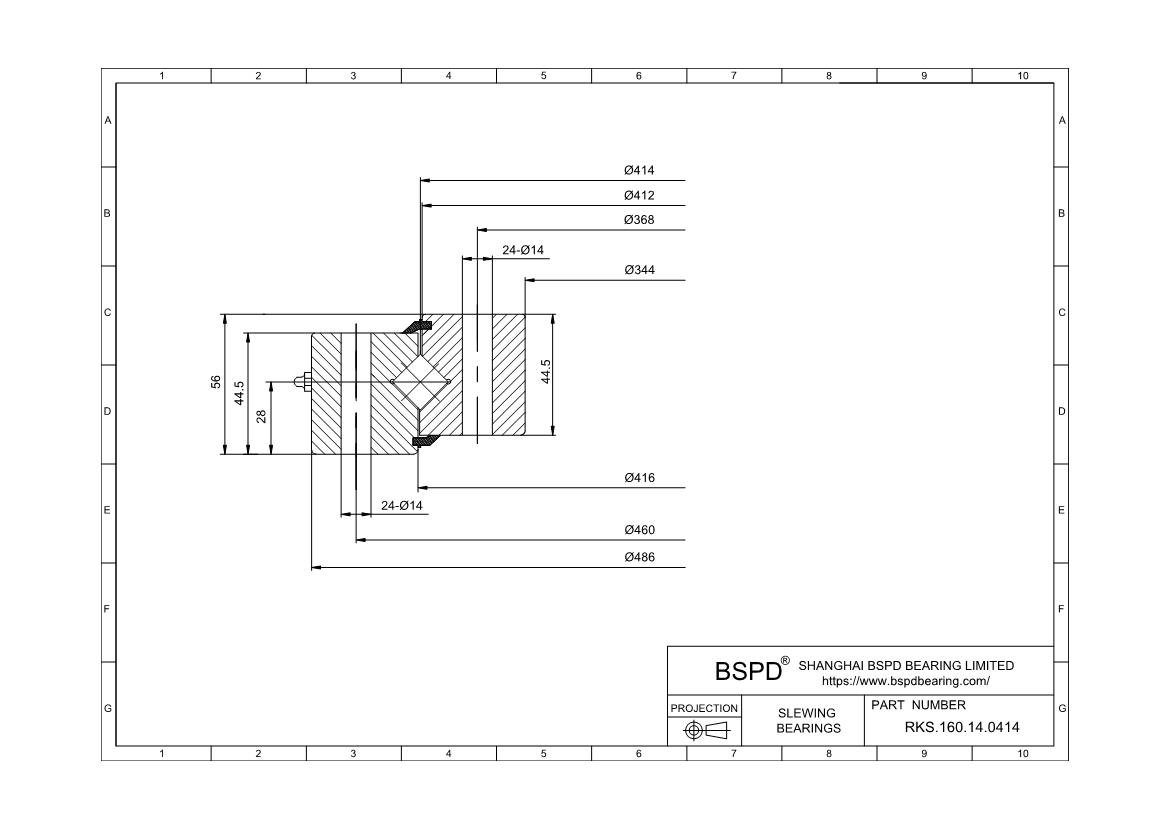

RKS.160.14.0414
SKF Slewing Bearings
Dimensions: Bore (Inner) Diameter: 344 mm； Outer Diameter: 486 mm； Width (Thickness): 56mm;
REQUEST FOR QUOTE
Product Attributes
| Specifications | |
| Part Number | RKS.160.14.0414 |
| Gear | without a gear |
| Geometry | |
| weight | 28,0 |
| dm | 414 |
| D | 486 |
| D1 | 416 |
| d | 344 |
| d1 | 412 |
| Attachment bolt holes | |
| Outer ring | |
| Je | 460 |
| Ke | 14 |
| Ne | 24 |
| inner ring | |
| Ji | 368 |
| Ki | 14 |
| Ni | 24 |
| Basic load ratings | |
| axial dynamic (C) | 167 |
| static (C0) | 595 |
| Static limitingload diagram | |
| Raceway curves | r1 |
| Bolt curves | b1 |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Slewing Bearings RKS.160.14.0414 ? SKF Slewing Bearings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
