RKS.062.20.1094
SKF Slewing Bearings

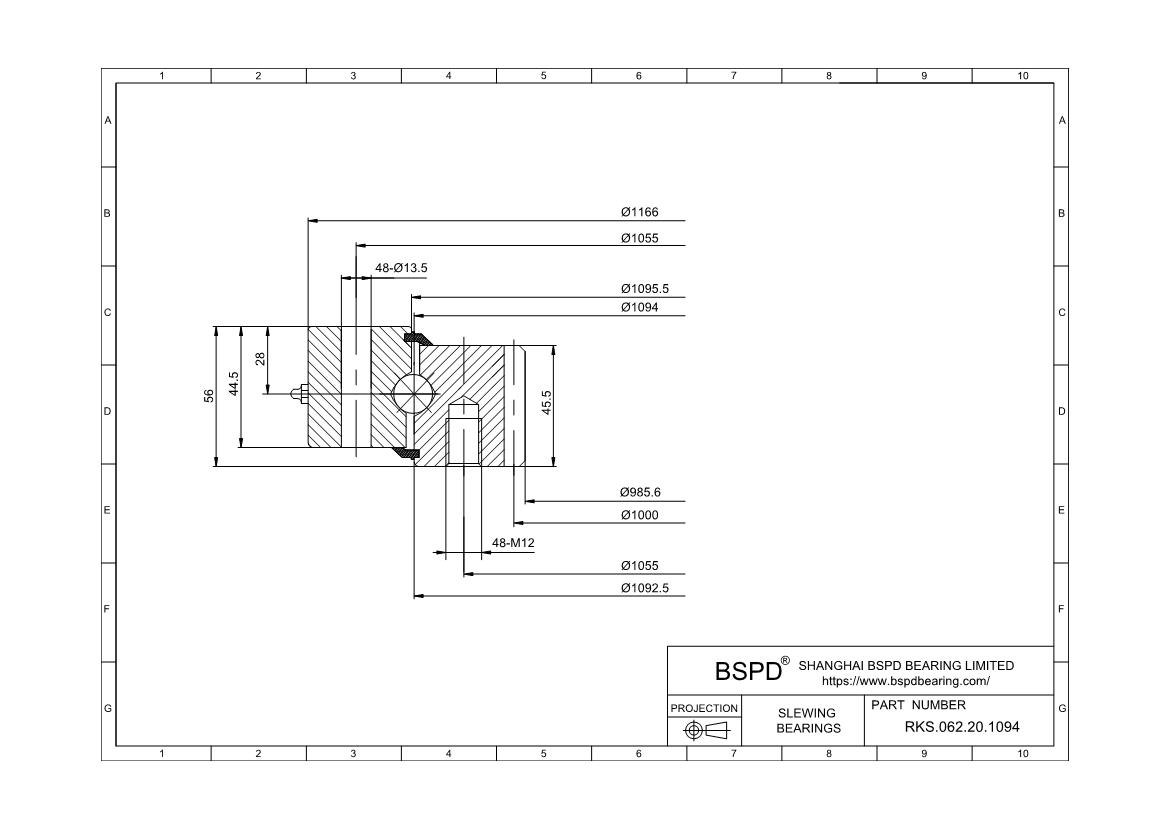

Dimensions: Bore (Inner) Diameter: 985.6 mm； Outer Diameter: 1166 mm； Width (Thickness): 56mm;
REQUEST FOR QUOTE
Product Attributes
| Specifications | |
| Part Number | RKS.062.20.1094 |
| Gear | internal gear |
| Geometry | |
| weight | 91,0 |
| dm | 1 094 |
| D | 1 166 |
| D1 | 1 095,5 |
| d | 985,6 |
| d1 | 1 092,5 |
| Attachment bolt holes | |
| Outer ring | |
| Je | 1 140 |
| Ke | 13,5 |
| Ne | 48 |
| inner ring | |
| Ji | 1 055 |
| Ki | M 12 |
| Ni | 48 |
| Gear Data | |
| Gear Dimensions(d01) | 1 000 |
| Module(m) | 8 |
| Number of teeth(z) | 125 |
| x·m | |
| k·m | –0,8 |
| Permissible tooth forces T(fnormal) | 21 |
| Permissible tooth forces T(fMAX) | 87 |
| Basic load ratings | |
| axial dynamic (C) | 303 |
| static (C0) | 2 710 |
| Static limitingload diagram | |
| Raceway curves | r7 |
| Bolt curves | b7 |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Slewing Bearings RKS.062.20.1094 ? SKF Slewing Bearings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
