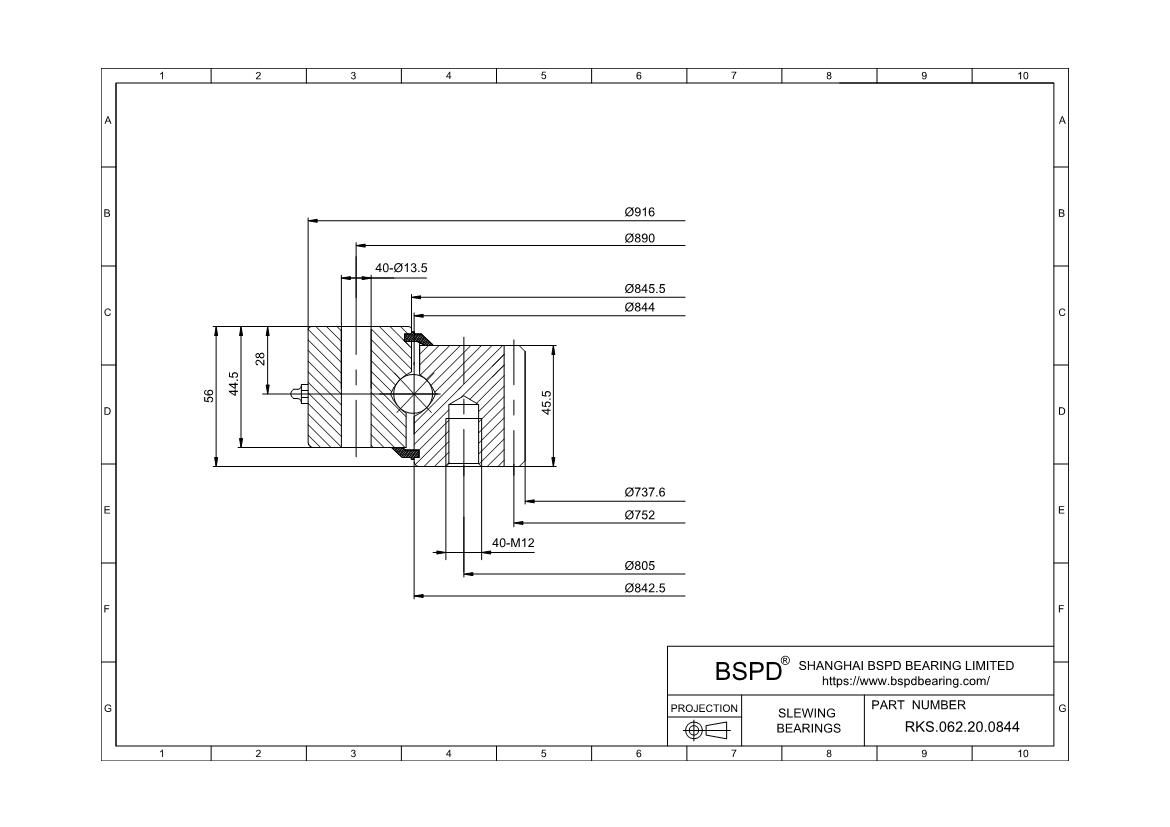

RKS.062.20.0844
SKF Slewing Bearings
Dimensions: Bore (Inner) Diameter: 737.6 mm； Outer Diameter: 916 mm； Width (Thickness): 56mm;
REQUEST FOR QUOTE
Product Attributes
| Specifications | |
| Part Number | RKS.062.20.0844 |
| Gear | internal gear |
| Geometry | |
| weight | 69,0 |
| dm | 844 |
| D | 916 |
| D1 | 845,5 |
| d | 737,6 |
| d1 | 842,5 |
| Attachment bolt holes | |
| Outer ring | |
| Je | 890 |
| Ke | 13,5 |
| Ne | 40 |
| inner ring | |
| Ji | 805 |
| Ki | M 12 |
| Ni | 40 |
| Gear Data | |
| Gear Dimensions(d01) | 752 |
| Module(m) | 8 |
| Number of teeth(z) | 94 |
| x·m | |
| k·m | –0,8 |
| Permissible tooth forces T(fnormal) | 21 |
| Permissible tooth forces T(fMAX) | 87 |
| Basic load ratings | |
| axial dynamic (C) | 276 |
| static (C0) | 2 100 |
| Static limitingload diagram | |
| Raceway curves | r5 |
| Bolt curves | b5 |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
