RKS.062.20.0744
SKF Slewing Bearings
Dimensions: Bore (Inner) Diameter: 649.2 mm; Outer Diameter: 816 mm; Width (Thickness): 56mm;
![RKS.062.20.0744](https://www.bspdbearing.com/wp-content/uploads/2021/05/skf2.jpg)
REQUEST FOR QUOTE
Product Attributes
Specifications | |
Part Number | RKS.062.20.0744 |
Gear | internal gear |
Geometry | |
weight | 58,0 |
dm | 744 |
D | 816 |
D1 | 745,5 |
d | 649,2 |
d1 | 742,5 |
Attachment bolt holes | |
Outer ring | |
Je | 790 |
Ke | 13,5 |
Ne | 40 |
inner ring | |
Ji | 705 |
Ki | M 12 |
Ni | 40 |
Gear Data | |
Gear Dimensions(d01) | 660 |
Module(m) | 6 |
Number of teeth(z) | 110 |
x·m | |
k·m | –0,6 |
Permissible tooth forces T(fnormal) | 16 |
Permissible tooth forces T(fMAX) | 65 |
Basic load ratings | |
axial dynamic (C) | 262 |
static (C0) | 1 840 |
Static limitingload diagram | |
Raceway curves | r4 |
Bolt curves | b4 |

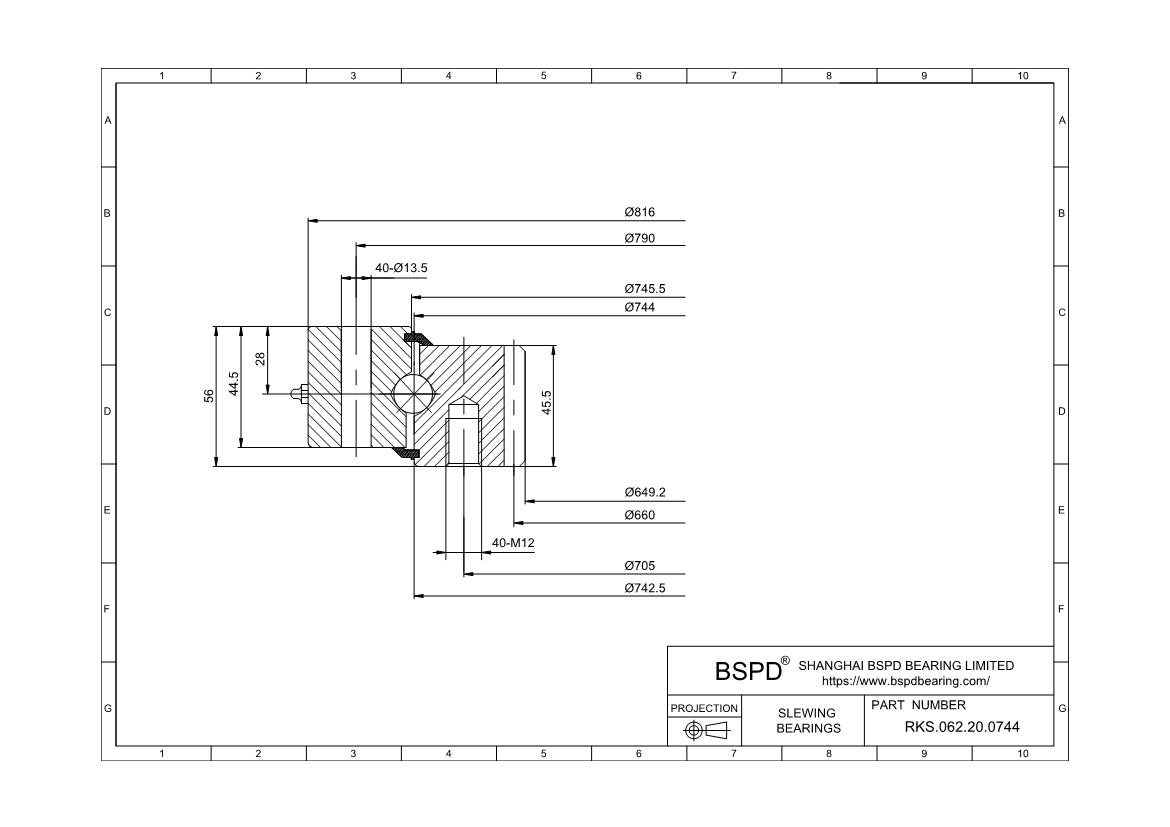

![RKS.062.20.0744](/wp-content/uploads/pdf/RKS.062.20.0744/1.jpg)
Print PDF
Request a 3D CAD Model
