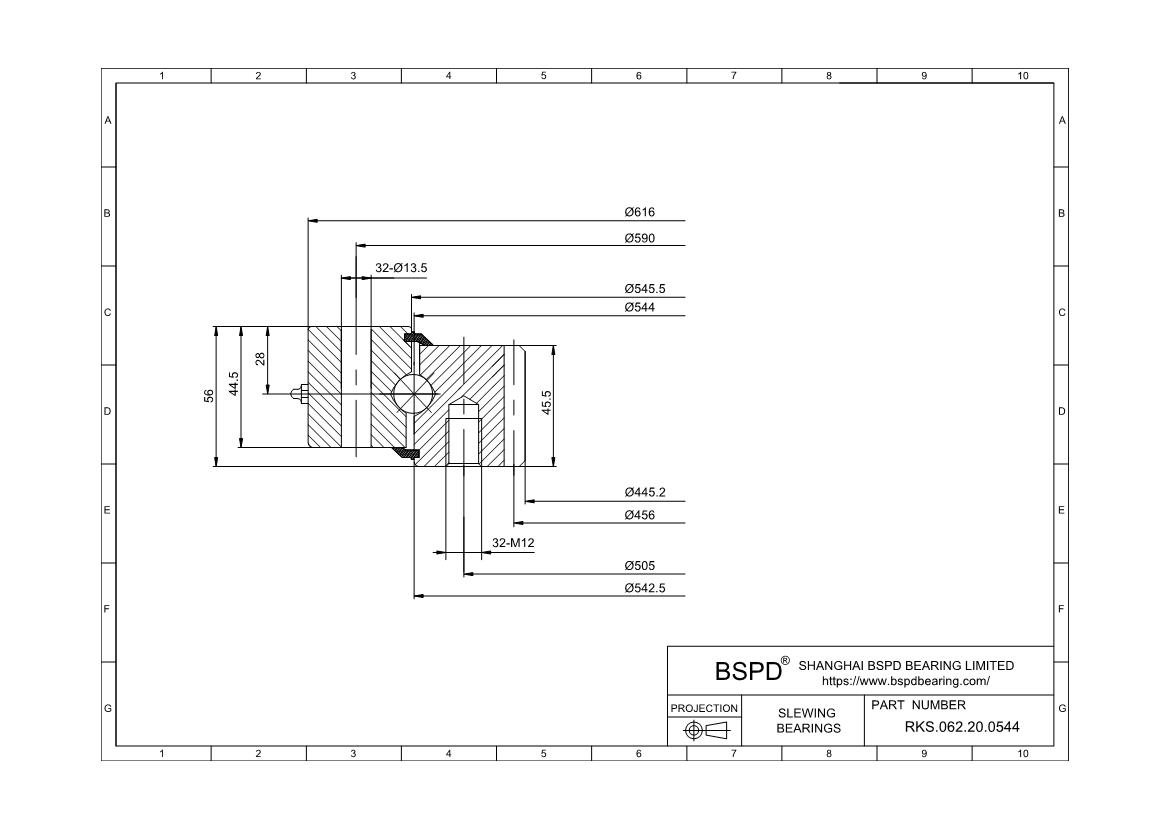

RKS.062.20.0544
SKF Slewing Bearings
Dimensions: Bore (Inner) Diameter: 445.2 mm； Outer Diameter: 616 mm； Width (Thickness): 56mm;
REQUEST FOR QUOTE
Product Attributes
| Specifications | |
| Part Number | RKS.062.20.0544 |
| Gear | internal gear |
| Geometry | |
| weight | 42,0 |
| dm | 544 |
| D | 616 |
| D1 | 545,5 |
| d | 445,2 |
| d1 | 542,5 |
| Attachment bolt holes | |
| Outer ring | |
| Je | 590 |
| Ke | 13,5 |
| Ne | 32 |
| inner ring | |
| Ji | 505 |
| Ki | M 12 |
| Ni | 32 |
| Gear Data | |
| Gear Dimensions(d01) | 456 |
| Module(m) | 6 |
| Number of teeth(z) | 76 |
| x·m | |
| k·m | –0,6 |
| Permissible tooth forces T(fnormal) | 16 |
| Permissible tooth forces T(fMAX) | 65 |
| Basic load ratings | |
| axial dynamic (C) | 233 |
| static (C0) | 1 350 |
| Static limitingload diagram | |
| Raceway curves | r2 |
| Bolt curves | b2 |
