RKS.062.20.0414
SKF Slewing Bearings

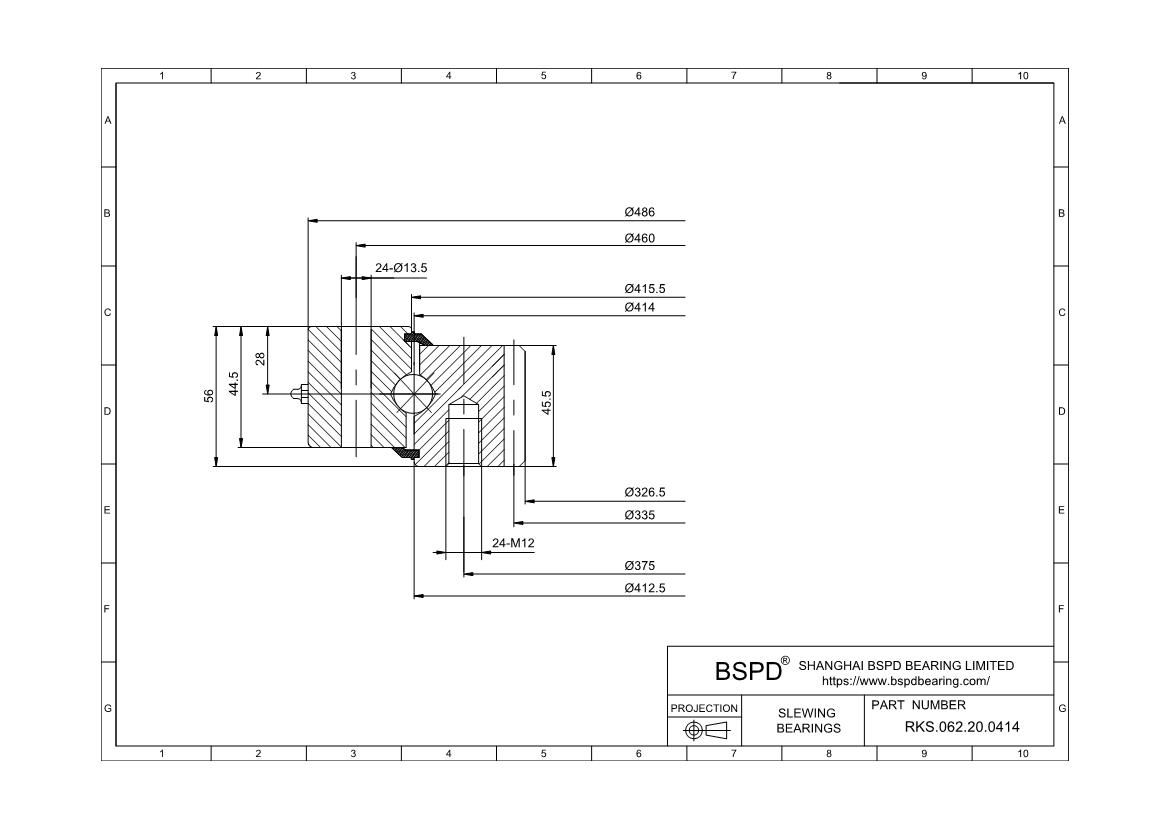

Dimensions: Bore (Inner) Diameter: 326.5 mm； Outer Diameter: 486 mm； Width (Thickness): 56mm;
REQUEST FOR QUOTE
Product Attributes
| Specifications | |
| Part Number | RKS.062.20.0414 |
| Gear | internal gear |
| Geometry | |
| weight | 31,0 |
| dm | 414 |
| D | 486 |
| D1 | 415,5 |
| d | 326,5 |
| d1 | 412,5 |
| Attachment bolt holes | |
| Outer ring | |
| Je | 460 |
| Ke | 13,5 |
| Ne | 24 |
| inner ring | |
| Ji | 375 |
| Ki | M 12 |
| Ni | 24 |
| Gear Data | |
| Gear Dimensions(d01) | 335 |
| Module(m) | 5 |
| Number of teeth(z) | 67 |
| x·m | |
| k·m | –0,75 |
| Permissible tooth forces T(fnormal) | 12 |
| Permissible tooth forces T(fMAX) | 49 |
| Basic load ratings | |
| axial dynamic (C) | 209 |
| static (C0) | 1 010 |
| Static limitingload diagram | |
| Raceway curves | r1 |
| Bolt curves | b1 |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Slewing Bearings RKS.062.20.0414 ? SKF Slewing Bearings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
