RKS.061.25.1314
SKF Slewing Bearings

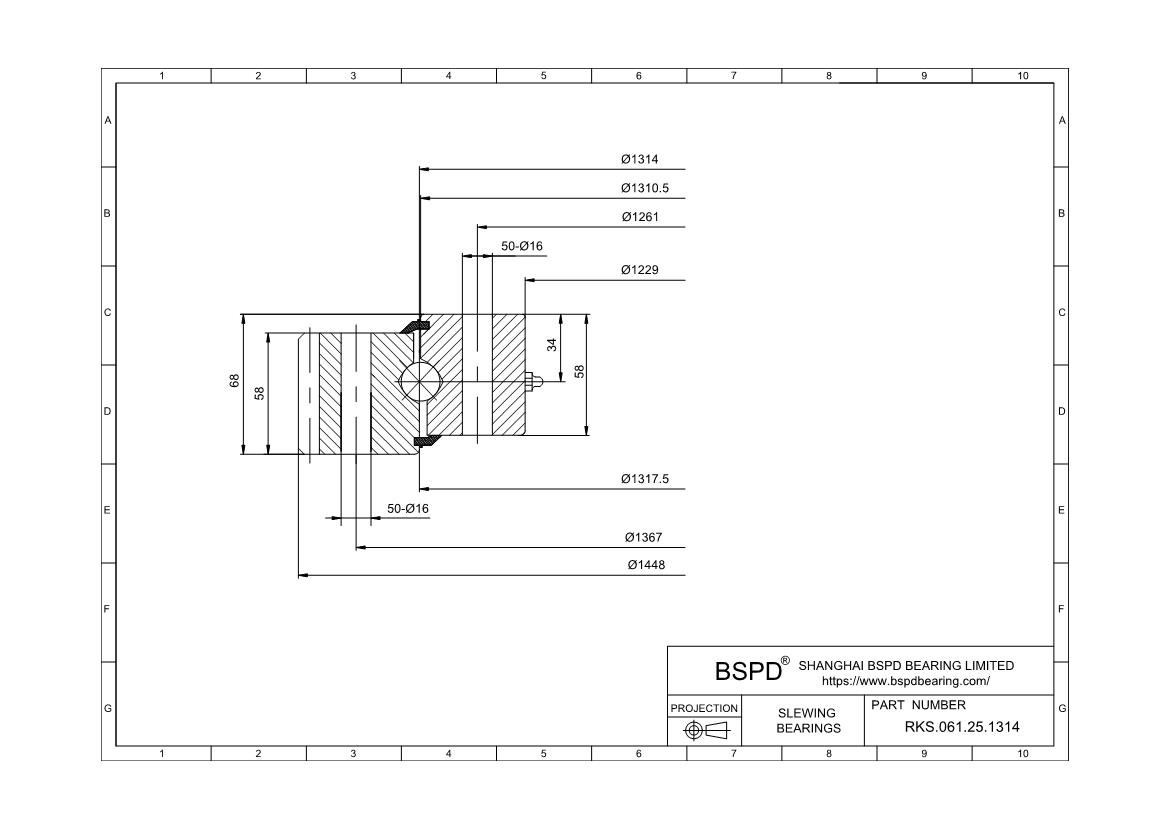

Dimensions: Bore (Inner) Diameter: 1229 mm； Outer Diameter: 1448 mm； Width (Thickness): 68mm;
REQUEST FOR QUOTE
Product Attributes
| Specifications | |
| Part Number | RKS.061.25.1314 |
| Gear | external gear |
| Geometry | |
| weight | 166 |
| dm | 1 314 |
| D | 1 448 |
| D1 | 1 317,5 |
| d | 1 229 |
| d1 | 1 310,5 |
| Attachment bolt holes | |
| Outer ring | |
| Je | 1 367 |
| Ke | 16 |
| Ne | 50 |
| inner ring | |
| Ji | 1 261 |
| Ki | 16 |
| Ni | 50 |
| Gear Data | |
| Gear Dimensions(d01) | 1 420 |
| Module(m) | 10 |
| Number of teeth(z) | 142 |
| x·m | +5 |
| k·m | –1 |
| Permissible tooth forces T(fnormal) | 45 |
| Permissible tooth forces T(fMAX) | 130 |
| Basic load ratings | |
| axial dynamic (C) | 526 |
| static (C0) | 4 380 |
| Static limitingload diagram | |
| Raceway curves | r2 |
| Bolt curves | b2 |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Slewing Bearings RKS.061.25.1314 ? SKF Slewing Bearings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
