RKS.060.30.1904
SKF Slewing Bearings

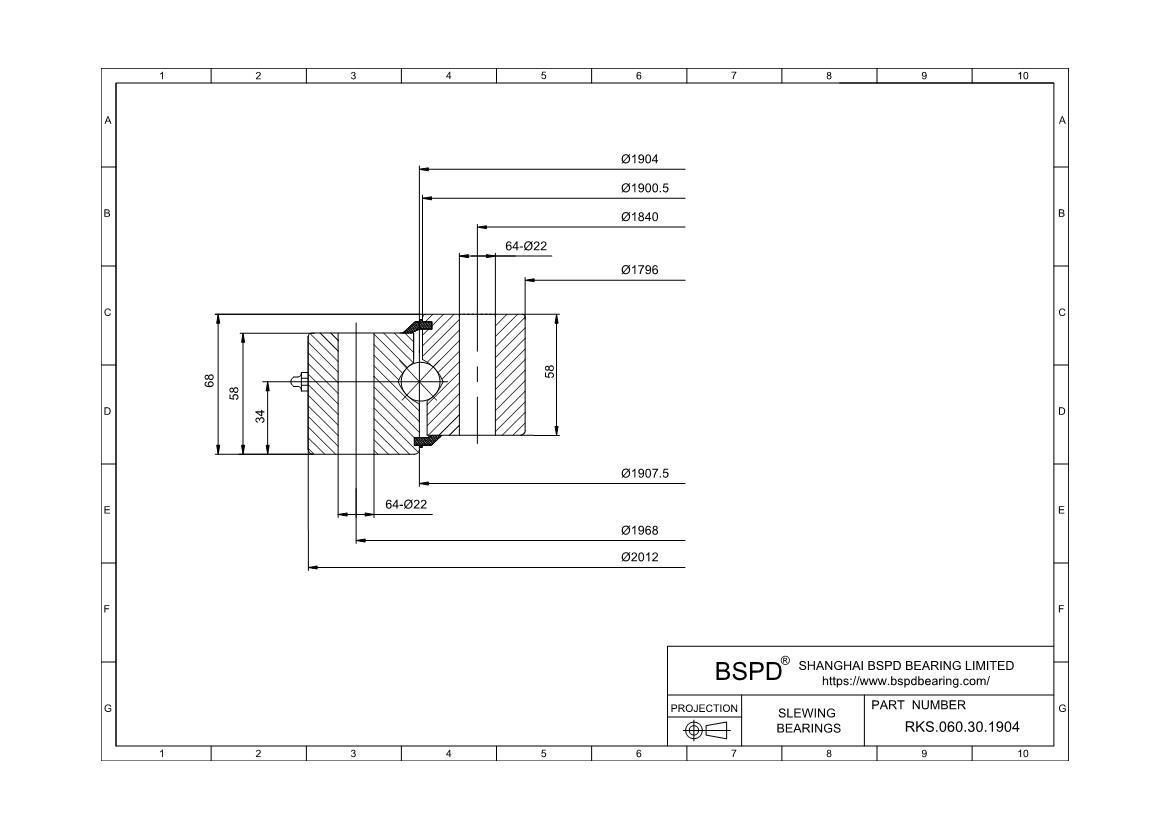

Dimensions: Bore (Inner) Diameter: 1796 mm； Outer Diameter: 2012 mm； Width (Thickness): 68mm;
REQUEST FOR QUOTE
Product Attributes
| Specifications | |
| Part Number | RKS.060.30.1904 |
| Gear | without a gear |
| Geometry | |
| weight | 240 |
| dm | 1 904 |
| D | 2 012 |
| D1 | 1 907,5 |
| d | 1 796 |
| d1 | 1 900,5 |
| Attachment bolt holes | |
| Outer ring | |
| Je | 1 968 |
| Ke | 22 |
| Ne | 64 |
| inner ring | |
| Ji | 1 840 |
| Ki | 22 |
| Ni | 64 |
| Basic load ratings | |
| axial dynamic (C) | 690 |
| static (C0) | 7 070 |
| Static limitingload diagram | |
| Raceway curves | r7 |
| Bolt curves | b7 |
Print PDF
Request a 3D CAD Model
