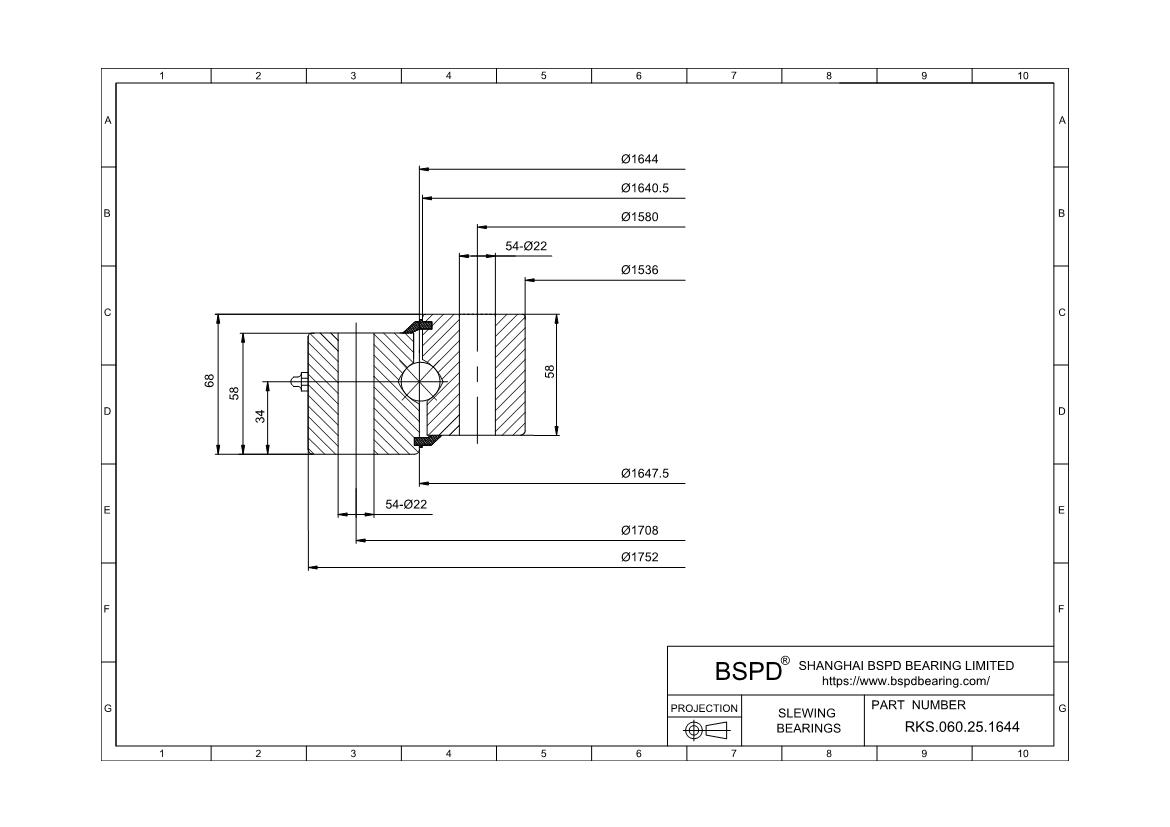

RKS.060.25.1644
SKF Slewing Bearings
Dimensions: Bore (Inner) Diameter: 1536 mm； Outer Diameter: 1752 mm； Width (Thickness): 68mm;
REQUEST FOR QUOTE
Product Attributes
| Specifications | |
| Part Number | RKS.060.25.1644 |
| Gear | without a gear |
| Geometry | |
| weight | 210 |
| dm | 1 644 |
| D | 1 752 |
| D1 | 1 647,5 |
| d | 1 536 |
| d1 | 1 640,5 |
| Attachment bolt holes | |
| Outer ring | |
| Je | 1 708 |
| Ke | 22 |
| Ne | 54 |
| inner ring | |
| Ji | 1 580 |
| Ki | 22 |
| Ni | 54 |
| Basic load ratings | |
| axial dynamic (C) | 570 |
| static (C0) | 5 460 |
| Static limitingload diagram | |
| Raceway curves | r5 |
| Bolt curves | b5 |
Print PDF
Request a 3D CAD Model
