RKS.060.25.1534
SKF Slewing Bearings

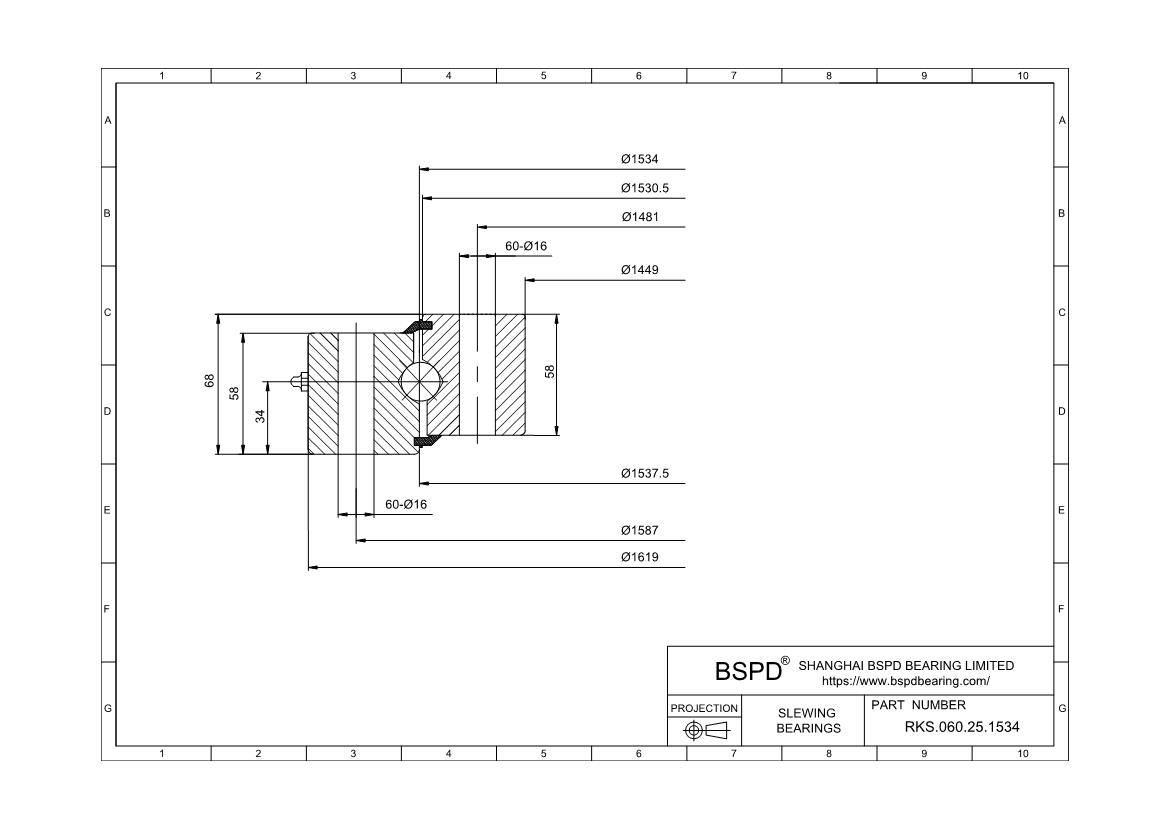

Dimensions: Bore (Inner) Diameter: 1449 mm； Outer Diameter: 1619 mm； Width (Thickness): 68mm;
REQUEST FOR QUOTE
Product Attributes
| Specifications | |
| Part Number | RKS.060.25.1534 |
| Gear | without a gear |
| Geometry | |
| weight | 155 |
| dm | 1 534 |
| D | 1 619 |
| D1 | 1 537,5 |
| d | 1 449 |
| d1 | 1 530,5 |
| Attachment bolt holes | |
| Outer ring | |
| Je | 1 587 |
| Ke | 16 |
| Ne | 60 |
| inner ring | |
| Ji | 1 481 |
| Ki | 16 |
| Ni | 60 |
| Basic load ratings | |
| axial dynamic (C) | 557 |
| static (C0) | 5 110 |
| Static limitingload diagram | |
| Raceway curves | r4 |
| Bolt curves | b4 |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
