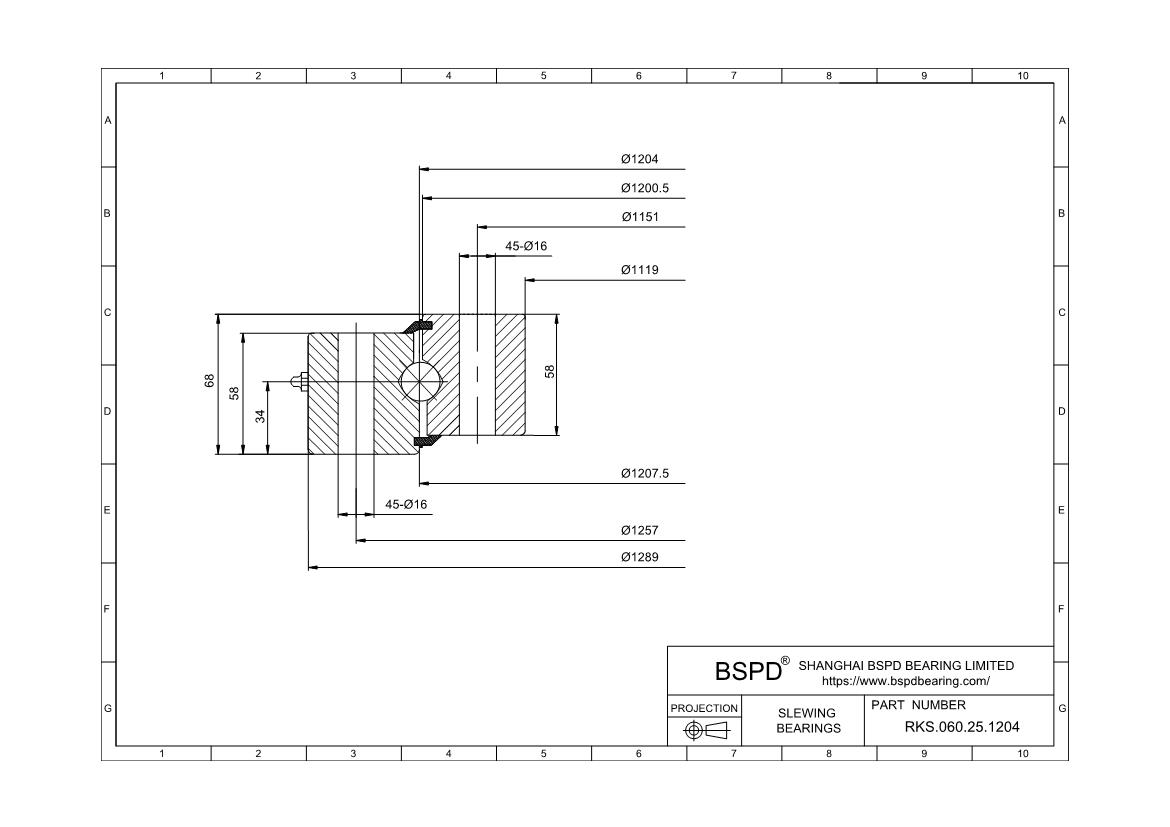

RKS.060.25.1204
SKF Slewing Bearings
Dimensions: Bore (Inner) Diameter: 1119 mm； Outer Diameter: 1289 mm； Width (Thickness): 68mm;
REQUEST FOR QUOTE
Product Attributes
| Specifications | |
| Part Number | RKS.060.25.1204 |
| Gear | without a gear |
| Geometry | |
| weight | 120 |
| dm | 1 204 |
| D | 1 289 |
| D1 | 1 207,5 |
| d | 1 119 |
| d1 | 1 200,5 |
| Attachment bolt holes | |
| Outer ring | |
| Je | 1 257 |
| Ke | 16 |
| Ne | 45 |
| inner ring | |
| Ji | 1 151 |
| Ki | 16 |
| Ni | 45 |
| Basic load ratings | |
| axial dynamic (C) | 508 |
| static (C0) | 3 990 |
| Static limitingload diagram | |
| Raceway curves | r1 |
| Bolt curves | b1 |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Slewing Bearings RKS.060.25.1204 ? SKF Slewing Bearings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
