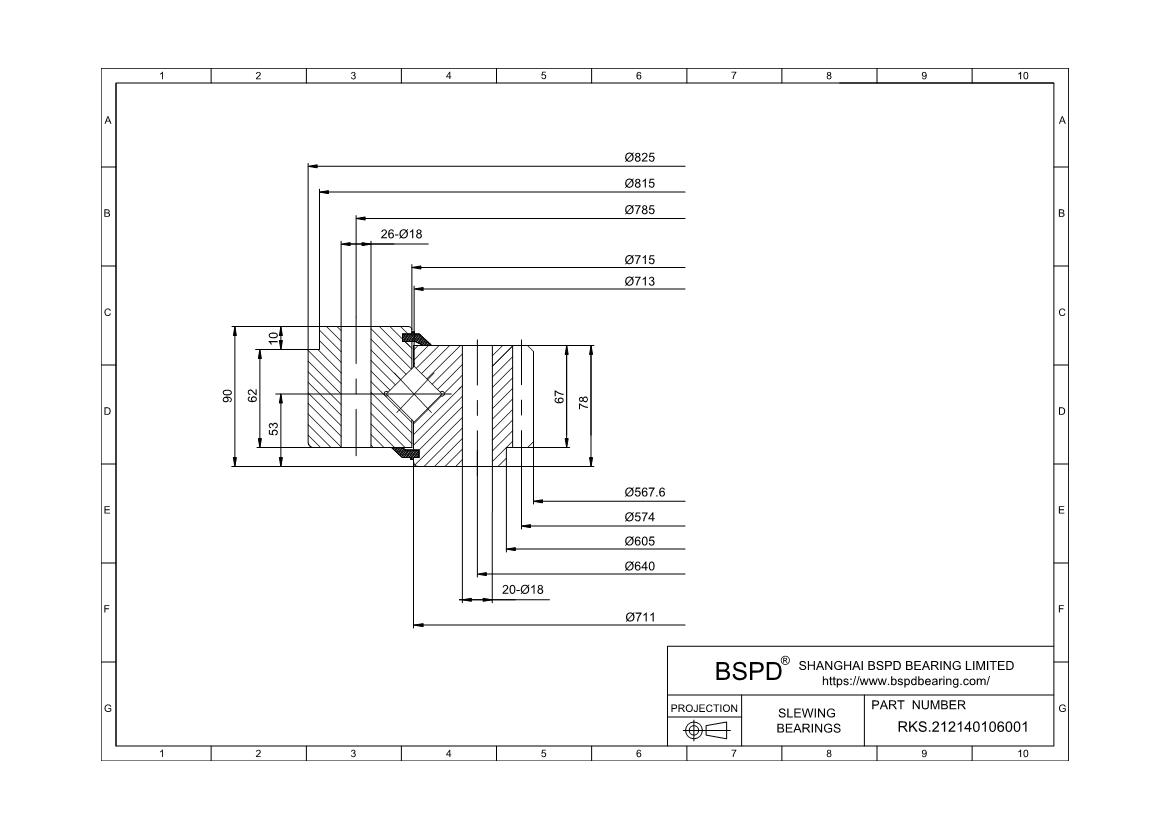

RKS.212140106001
SKF Slewing Bearings
Dimensions: Bore (Inner) Diameter: ； Outer Diameter: ； Width (Thickness): ;
REQUEST FOR QUOTE
Product Attributes
| Specifications | |
| Part Number | RKS. 212140106001 |
| Gear | internal gear |
| Geometry | |
| weight | 133 |
| dm | 713 |
| D | 825 |
| d | 567,5 |
| H | 90 |
| H1 | 53 |
| Outer ring | |
| D1 | 815 |
| D2 | 715 |
| D3 | |
| C | 62 |
| C1 | 10 |
| inner ring | |
| d1 | 711 |
| d2 | 605 |
| B | 78 |
| B1 | 67 |
| De-sign | |
| Attachment bolt holes | |
| Outer ring | |
| Je | 785 |
| Ke | 18 |
| Ne | 263) |
| inner ring | |
| Ji | 640 |
| Ki | 18 |
| Ni | 203) |
| Gear Data | |
| Gear Dimensions(d01) | 574 |
| Module(m) | 7 |
| Number of teeth(z) | 82 |
| x·m | 3,5 |
| k·m | 0,25 |
| Permissible tooth forces T(fnormal) | 65 |
| Permissible tooth forces T(fMAX) | 131 |
| Basic load ratings | |
| axial dynamic (C) | 516 |
| static (C0) | 2 010 |
| Static limitingload diagram | |
| Raceway curves | r2 |
| Bolt curves | b2 |
