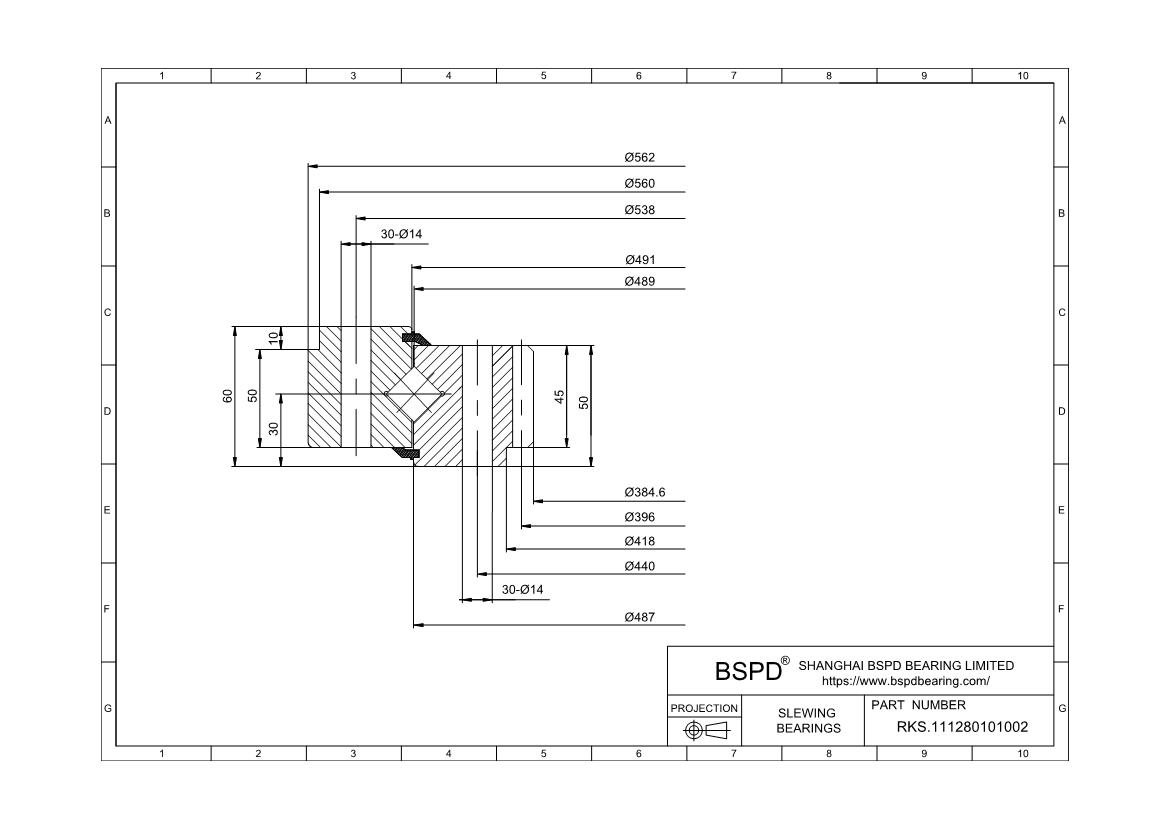

RKS.111280101002
SKF Slewing Bearings
Dimensions: Bore (Inner) Diameter: ； Outer Diameter: ； Width (Thickness): ;
REQUEST FOR QUOTE
Product Attributes
| Specifications | |
| Part Number | RKS. 111280101002 |
| Gear | internal gear |
| Geometry | |
| weight | 42,0 |
| dm | 489 |
| D | 562 |
| d | 384,6 |
| H | 60 |
| H1 | 30 |
| Outer ring | |
| D1 | 560 |
| D2 | 491 |
| D3 | |
| C | 50 |
| C1 | 10 |
| inner ring | |
| d1 | 487 |
| d2 | 418 |
| B | 50 |
| B1 | 45 |
| De-sign | |
| Attachment bolt holes | |
| Outer ring | |
| Je | 538 |
| Ke | 14 |
| Ne | 30 |
| inner ring | |
| Ji | 440 |
| Ki | 14 |
| Ni | 30 |
| Gear Data | |
| Gear Dimensions(d01) | 396 |
| Module(m) | 6 |
| Number of teeth(z) | 66 |
| x·m | |
| k·m | 0,3 |
| Permissible tooth forces T(fnormal) | 43 |
| Permissible tooth forces T(fMAX) | 86 |
| Basic load ratings | |
| axial dynamic (C) | 314 |
| static (C0) | 1 100 |
| Static limitingload diagram | |
| Raceway curves | r1 |
| Bolt curves | b1 |
