RK6-37E1Z
Kaydon Slewing Bearings

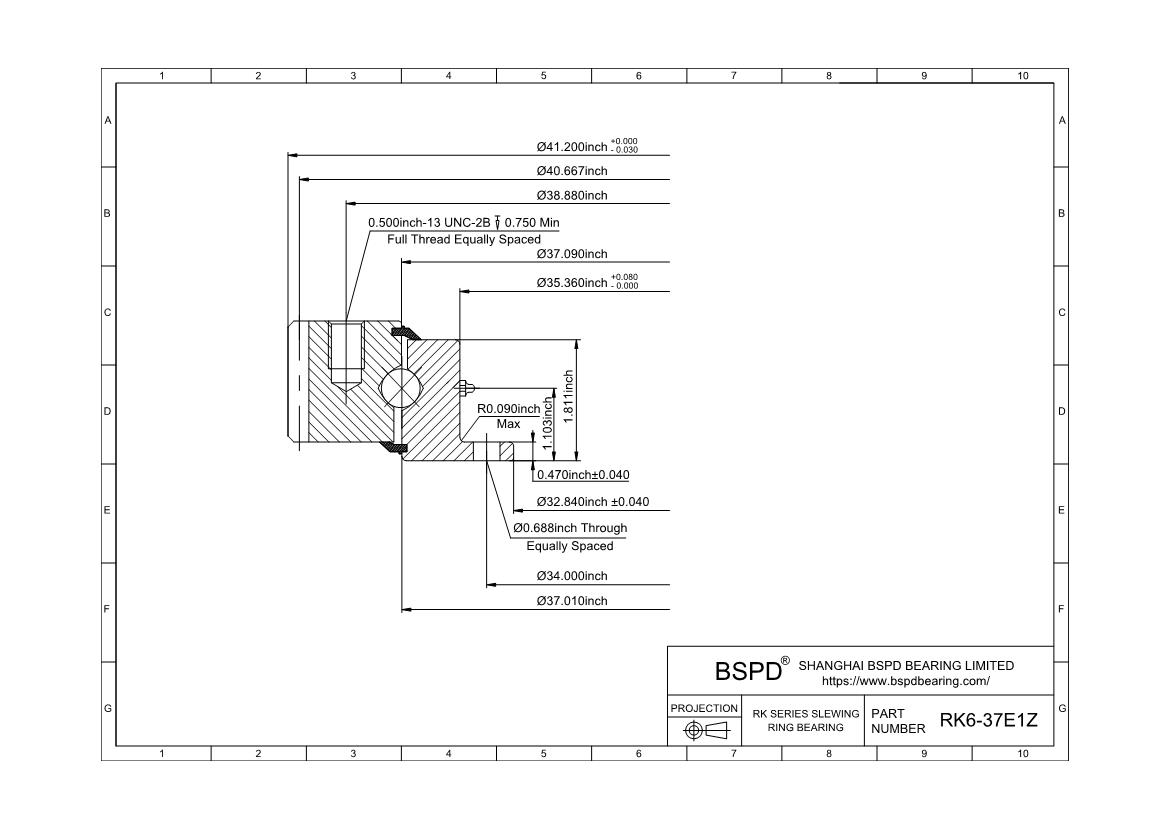

Dimensions: Bore (Inner) Diameter: 32.84"； Outer Diameter: 41.2"； Width (Thickness): ;
Product Attributes
| Specifications | |
| Part Number | RK6-37E1Z |
| Maximum Allowable Gear Tooth Load (Fz) | 7620lbs | 34.018KN |
| Moment Load Rating (Crm) | 65200ft-lbs | 291.071KN |
| Bearing Types | Slewing Ring Bearing |
| Outline Dimensions and Weight | |
| Outside Diameter of Outer Ring (Do) | 41.2 " | 1046.48mm |
| Outside Diameter of Outer Ring (Do) Tolerance | -0.03 " | -0.76mm |
| Inside Diameter of Inner Ring (di) | 32.84 " | 834.14mm |
| Inside Diameter of Inner Ring (di) Tolerance | ±.040 " | ±1.02mm |
| External Diameter on Outer Ring (Dr) | - |
| External Diameter on Outer Ring (Dr) Tolerance | - |
| Internal Diameter on Outer Ring (Di) | 37.09 " | 942.09mm |
| External Diameter on Inner Ring (do) | 37.01 " | 940.05mm |
| Internal Diameter on Inner Ring (dr) | 35.36 " | 898.14mm |
| Internal Diameter on Inner Ring (dr) Tolerance | +0.08 " | +2.03mm |
| Approximate Weight (lb) | 172 lbs | 78.017KG |
| Mounting Holes | |
| Bolt Circle in Outer Ring (Lo) | 38.88 " | 987.55mm |
| Number Holes in Outer Ring (no) | 18 |
| Bolt Circle in Inner Ring (Li) | 34 " | 863.6mm |
| Number Holes in Inner Ring (ni) | 20 |
| Gear Data | |
| Pitch Diameter of Gear (D2) | 40.667 " | 1032.94mm |
| Diametral Pitch (Pd) | 3 |
| Number of Gear Teeth (z2) | 122 |
| Pressure Angle of Gear Teeth (α) | 20 º |
| Mating Pinions | 39200003 39200004 |
