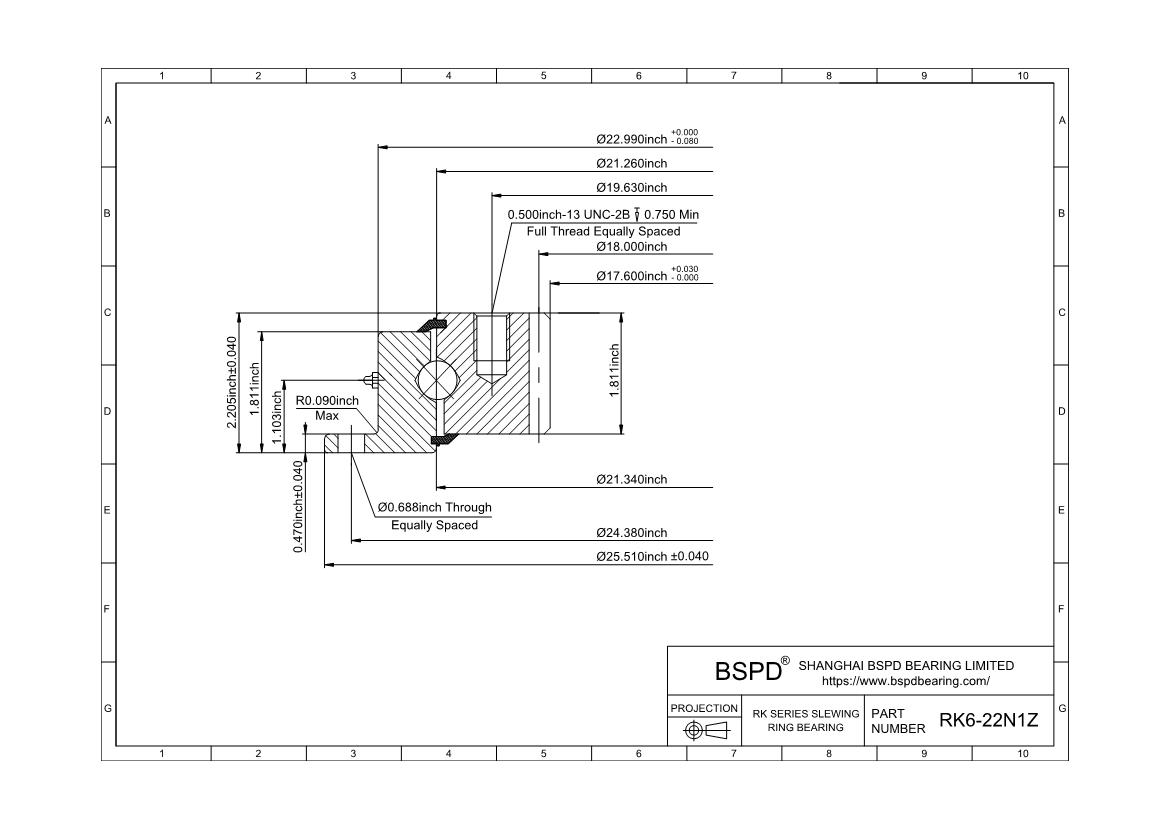

RK6-22N1Z
Kaydon Slewing Bearings
Dimensions: Bore (Inner) Diameter: 17.6"； Outer Diameter: 25.51"； Width (Thickness): ;
Product Attributes
| Specifications | |
| Part Number | RK6-22N1Z |
| Maximum Allowable Gear Tooth Load (Fz) | 6530lbs | 29.152KN |
| Moment Load Rating (Crm) | 37700ft-lbs | 168.304KN |
| Bearing Types | Slewing Ring Bearing |
| Outline Dimensions and Weight | |
| Outside Diameter of Outer Ring (Do) | 25.51" | 647.95mm |
| Outside Diameter of Outer Ring (Do) Tolerance | ±.040 " | ±1.02mm |
| Inside Diameter of Inner Ring (di) | 17.6 " | 447.04mm |
| Inside Diameter of Inner Ring (di) Tolerance | +0.03 " | +0.76mm |
| External Diameter on Outer Ring (Dr) | 22.99 " | 583.95mm |
| External Diameter on Outer Ring (Dr) Tolerance | -0.08 " | -2.03mm |
| Internal Diameter on Outer Ring (Di) | 21.34 " | 542.04mm |
| External Diameter on Inner Ring (do) | 21.26 " | 540mm |
| Internal Diameter on Inner Ring (dr) | - |
| Internal Diameter on Inner Ring (dr) Tolerance | - |
| Approximate Weight (lb) | 90 lbs | 40.823KG |
| Mounting Holes | |
| Bolt Circle in Outer Ring (Lo) | 24.38 " | 619.25mm |
| Number Holes in Outer Ring (no) | 10 |
| Bolt Circle in Inner Ring (Li) | 19.63 " | 498.6mm |
| Number Holes in Inner Ring (ni) | 15 |
| Gear Data | |
| Pitch Diameter of Gear (D2) | 18 inch" | 457.2mm |
| Diametral Pitch (Pd) | 4 |
| Number of Gear Teeth (z2) | 72 |
| Pressure Angle of Gear Teeth (α) | 20 º |
| Mating Pinions | 39200001 39200002 |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Slewing Bearings RK6-22N1Z ? Kaydon Slewing Bearings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
