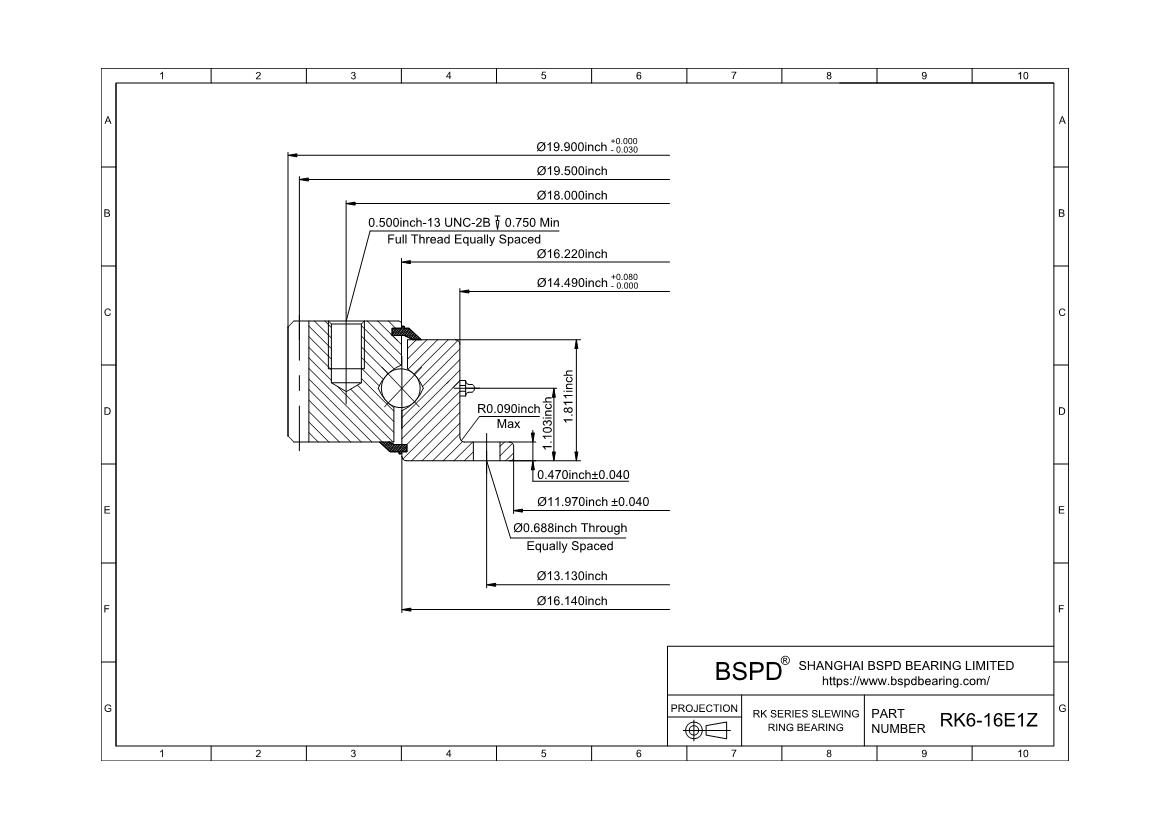

RK6-16E1Z
Kaydon Slewing Bearings
Dimensions: Bore (Inner) Diameter: 11.97"； Outer Diameter: 19.9"； Width (Thickness): ;
Product Attributes
| Specifications | |
| Part Number | RK6-16E1Z |
| Maximum Allowable Gear Tooth Load (Fz) | 5560lbs | 24.821KN |
| Moment Load Rating (Crm) | 22700ft-lbs | 101.339KN |
| Bearing Types | Slewing Ring Bearing |
| Outline Dimensions and Weight | |
| Outside Diameter of Outer Ring (Do) | 19.9" | 505.46mm |
| Outside Diameter of Outer Ring (Do) Tolerance | -0.03 " | -0.76mm |
| Inside Diameter of Inner Ring (di) | 11.97 " | 304.04mm |
| Inside Diameter of Inner Ring (di) Tolerance | ±.040 " | ±1.02mm |
| External Diameter on Outer Ring (Dr) | - |
| External Diameter on Outer Ring (Dr) Tolerance | - |
| Internal Diameter on Outer Ring (Di) | 16.22 " | 411.99mm |
| External Diameter on Inner Ring (do) | 16.14 " | 409.96mm |
| Internal Diameter on Inner Ring (dr) | 14.49 " | 368.05mm |
| Internal Diameter on Inner Ring (dr) Tolerance | +0.08 " | +2.03mm |
| Approximate Weight (lb) | 72 lbs | 32.658KG |
| Mounting Holes | |
| Bolt Circle in Outer Ring (Lo) | 18 " | 457.2mm |
| Number Holes in Outer Ring (no) | 8 |
| Bolt Circle in Inner Ring (Li) | 13.13 " | 333.5mm |
| Number Holes in Inner Ring (ni) | 12 |
| Gear Data | |
| Pitch Diameter of Gear (D2) | 19.5 " | 495.3mm |
| Diametral Pitch (Pd) | 4 |
| Number of Gear Teeth (z2) | 78 |
| Pressure Angle of Gear Teeth (α) | 20 º |
| Mating Pinions | 39200001 39200002 |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Slewing Bearings RK6-16E1Z ? Kaydon Slewing Bearings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
