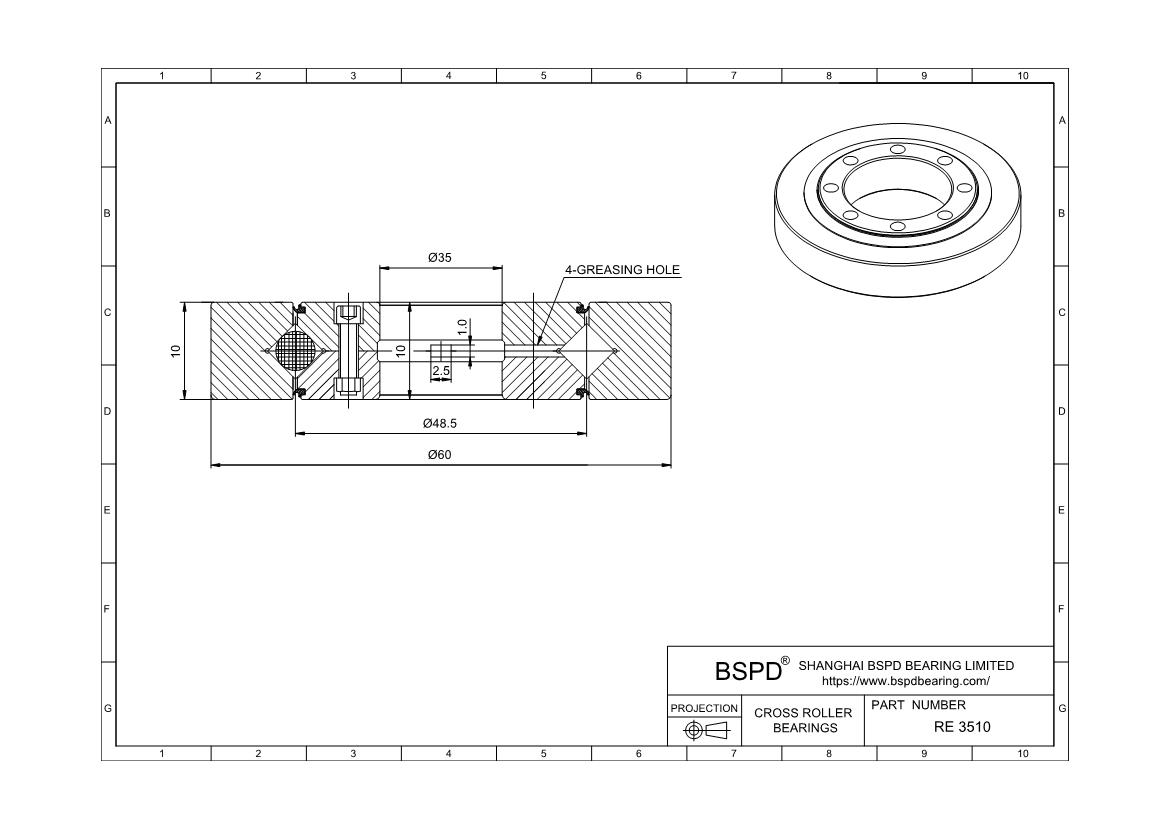

RE3510 Crossed Roller TYPE
Dimensions: Bore (Inner) Diameter: 35 mm； Outer Diameter: 60 mm； Width (Thickness): 10 mm;

REQUEST FOR QUOTE

Product Attributes

Part Number	RE3510
Bearing Type	Crossed Roller
Construction	Single Row
Seal Type	Open
ABEC Rating	ABEC-5 ABEC-7 ABEC-9
Shaft dia. mm	35
Mass(kg)	0.13
Bore Dia (d)	35
Outer Dia (D)	60
Width (B)	10
Greasing hole(a)	2.5
Greasing hole(b)	1
r(min)	0.6
Shoulder height ds(max)	42.5
Shoulder height Dh(min)	53.5
Basic load rating (radial)C kN	7.64
Basic load rating (radial)Co kN	9.12

Print PDF
Request a 3D CAD Model if you need special bearings - design custom bearings

What are the types of Crossed Roller Bearings RE3510 ? Crossed Roller TYPE Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:Negotiation
Price:Negotiation

Fast Delivery √
Best Quality √
Good Price √
