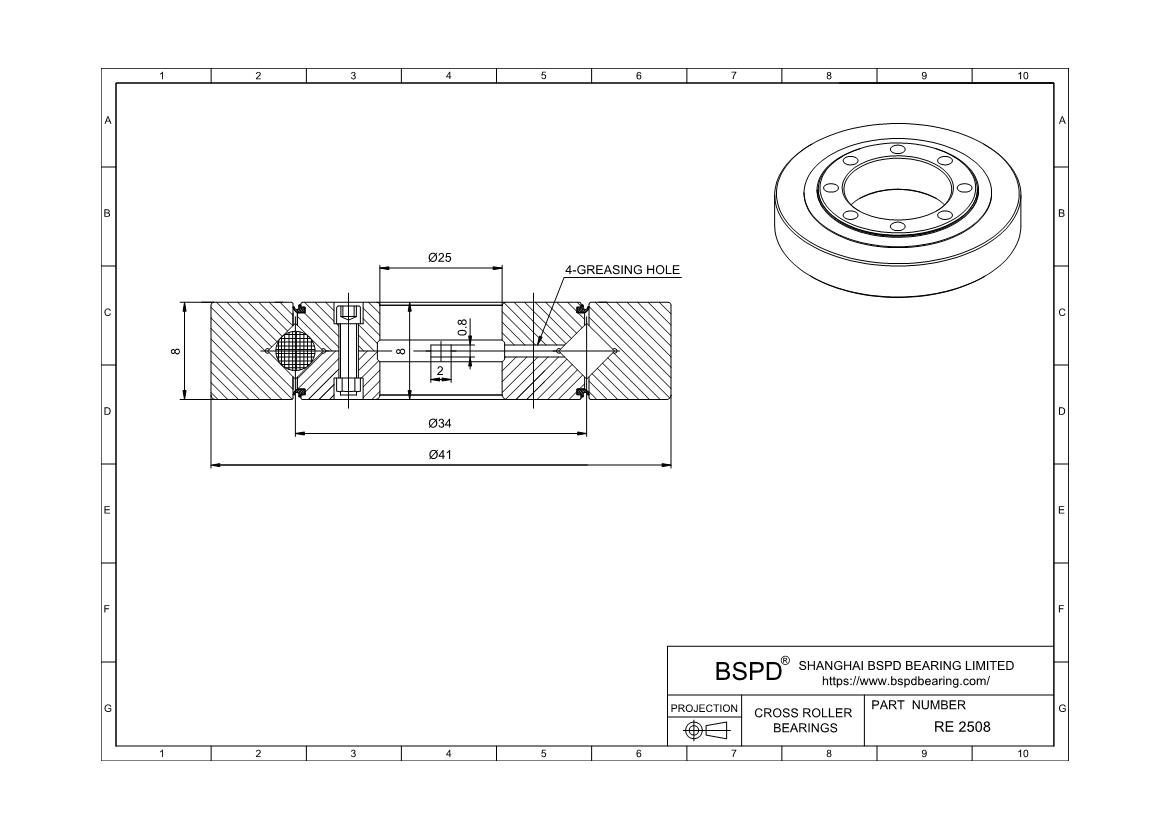

RE2508UU Crossed Roller TYPE
Dimensions: Bore (Inner) Diameter: 25 mm； Outer Diameter: 41 mm； Width (Thickness): 8 mm;

REQUEST FOR QUOTE

Product Attributes

Part Number	RE2508UU
Bearing Type	Crossed Roller
Construction	Single Row
Seal Type	Sealed
ABEC Rating	ABEC-5 ABEC-7 ABEC-9
Shaft dia. mm	25
Mass(kg)	0.05
Bore Dia (d)	25
Outer Dia (D)	41
Width (B)	8
Greasing hole(a)	2
Greasing hole(b)	0.8
r(min)	0.5
Shoulder height ds(max)	29.5
Shoulder height Dh(min)	37.5
Basic load rating (radial)C kN	3.63
Basic load rating (radial)Co kN	3.83
