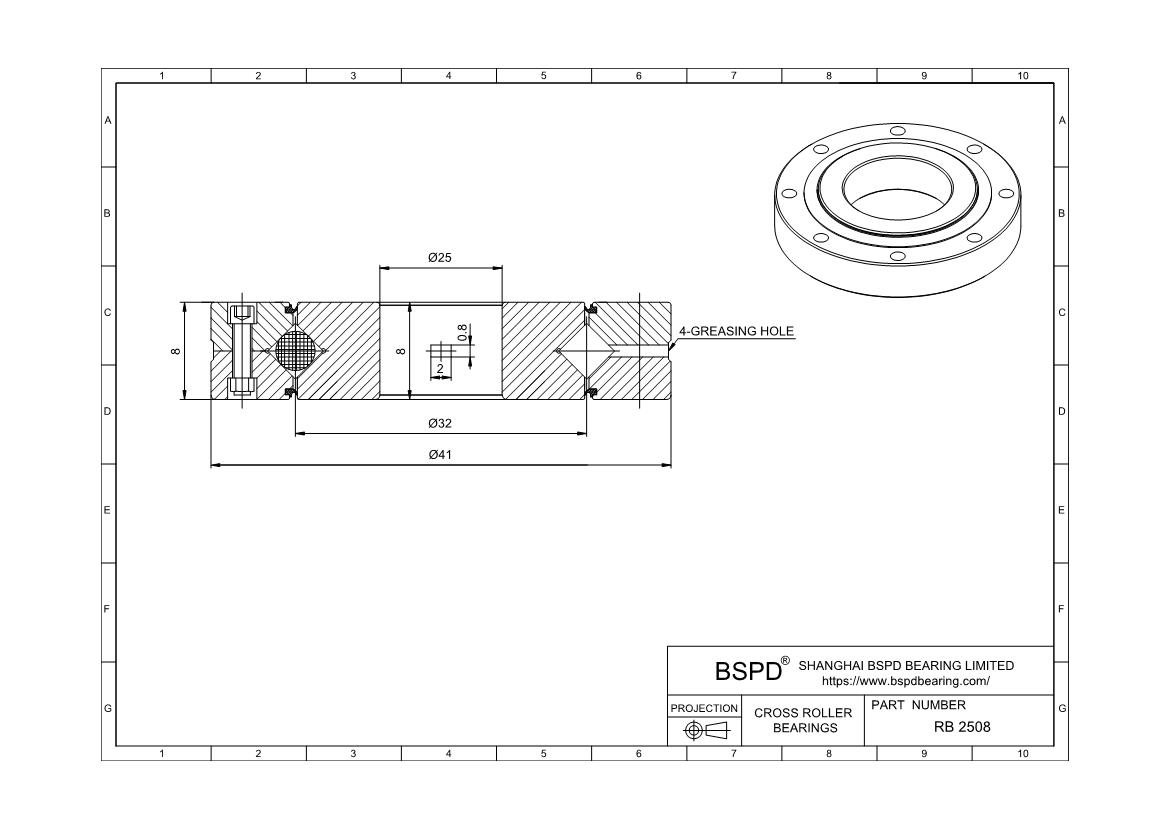

RB2508 Crossed Roller TYPE
Dimensions: Bore (Inner) Diameter: 25 mm； Outer Diameter: 41 mm； Width (Thickness): 8 mm;

RB2508
REQUEST FOR QUOTE
* *
Send
Product Attributes
THK Part Number RB2508
Bearing Type Roller
Roller Bearing Type Crossed
For Load Direction Combined Radial; Thrust; and Moment
Construction Single Row
Seal Type Open
Separator Full Complement
ABEC Rating ABEC-5 ABEC-7 ABEC-9
Ring Material Steel
Roller Material Steel
Shaft dia. mm 25
Mass(kg) 0.05
Bore Dia (d) 25
Outer Dia (D) 41
Width (B) 8
Greasing hole(d1)
r(min) 0.5
Shoulder height ds(max) 28.5
Shoulder height Dh(min) 35.5
Basic load rating (radial)C kN 3.63
Basic load rating (radial)Co kN 3.83
Lubrication Required
Shaft Mount Type Press Fit
Temperature Range 0 -230
RB2508
Print PDF
Request a 3D CAD Model if you need special bearings - design custom bearings
