RB24025UU Crossed Roller TYPE

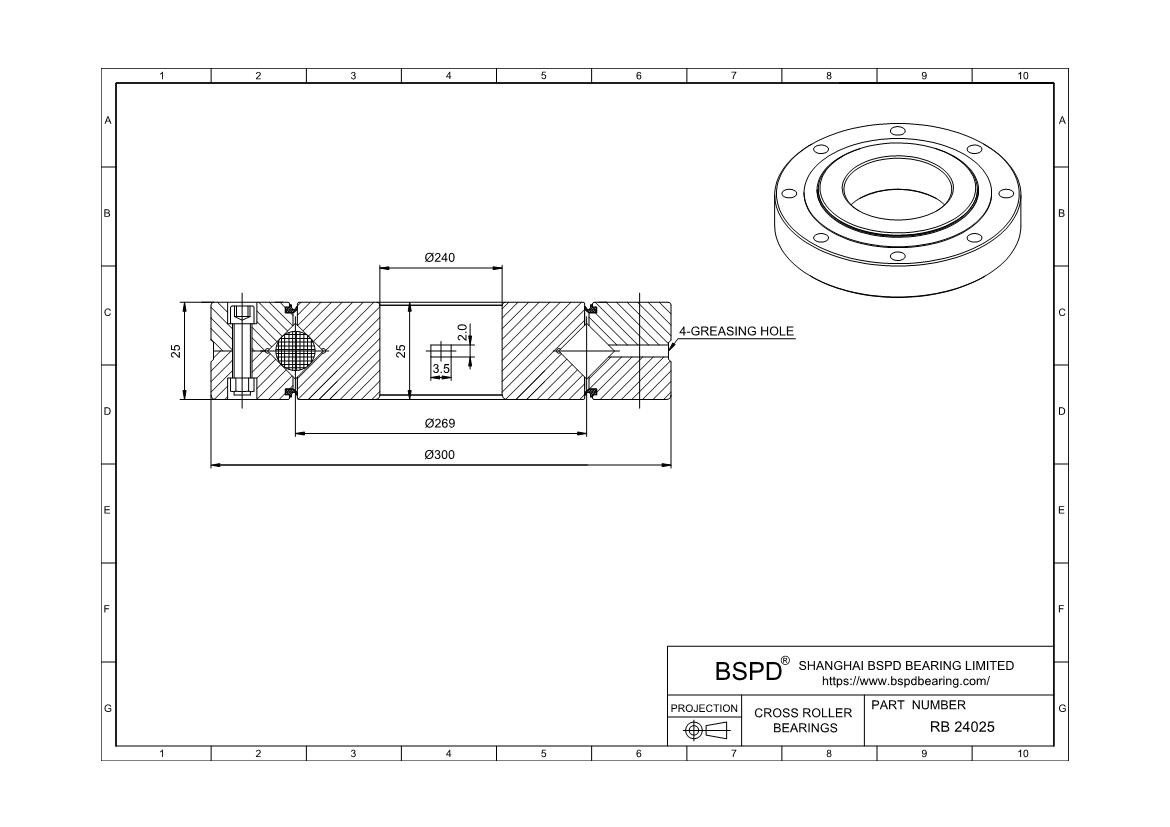

Dimensions: Bore (Inner) Diameter: 240 mm； Outer Diameter: 300 mm； Width (Thickness): 25 mm;

RB24025UU
REQUEST FOR QUOTE
* *
Send
Product Attributes
THK Part Number RB24025UU
Bearing Type Roller
Roller Bearing Type Crossed
For Load Direction Combined Radial; Thrust; and Moment
Construction Single Row
Seal Type Sealed
Separator Full Complement
ABEC Rating ABEC-5 ABEC-7 ABEC-9
Ring Material Steel
Roller Material Steel
Shaft dia. mm 240
Mass(kg) 4.5
Bore Dia (d) 240
Outer Dia (D) 300
Width (B) 25
Greasing hole(d1)
r(min) 2.5
Shoulder height ds(max) 256
Shoulder height Dh(min) 281
Basic load rating (radial)C kN 68.3
Basic load rating (radial)Co kN 145
Lubrication Required
Shaft Mount Type Press Fit
Temperature Range 0 -230
RB24025UU
Print PDF
Request a 3D CAD Model if you need special bearings - design custom bearings
What are the types of Crossed Roller Bearings RB24025UU ? Crossed Roller TYPE Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:Negotiation
Price:Negotiation
  • Fast Delivery     √
  • Best Quality       √
  • Good Price        √
