RB20030 Crossed Roller TYPE

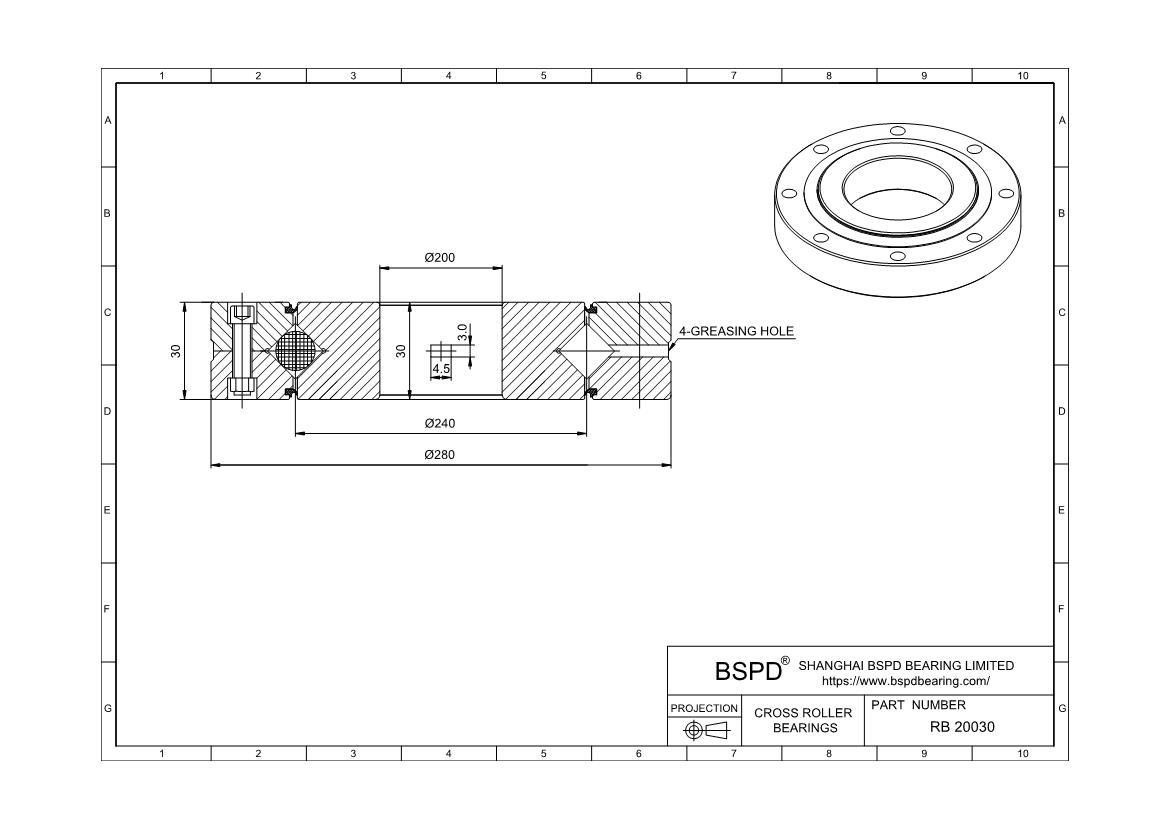

Dimensions: Bore (Inner) Diameter: 200 mm； Outer Diameter: 280 mm； Width (Thickness): 30 mm;

RB20030
REQUEST FOR QUOTE
* *
Send
Product Attributes
IKO Part Number CRB20030
THK Part Number RB20030
Bearing Type Roller
Roller Bearing Type Crossed
For Load Direction Combined Radial; Thrust; and Moment
Construction Single Row
Seal Type Open
Separator Full Complement
ABEC Rating ABEC-5 ABEC-7 ABEC-9
Ring Material Steel
Roller Material Steel
Shaft dia. mm 200
Mass(kg) 6.7
Bore Dia (d) 200
Outer Dia (D) 280
Width (B) 30
Greasing hole(d1)
r(min) 2
Shoulder height ds(max) 221
Shoulder height Dh(min) 258
Basic load rating (radial)C kN 114
Basic load rating (radial)Co kN 200
Lubrication Required
Shaft Mount Type Press Fit
Temperature Range 0 -230
RB20030
Print PDF
Request a 3D CAD Model if you need special bearings - design custom bearings
What are the types of Crossed Roller Bearings RB20030 ? Crossed Roller TYPE Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
