RB15030UU Crossed Roller TYPE

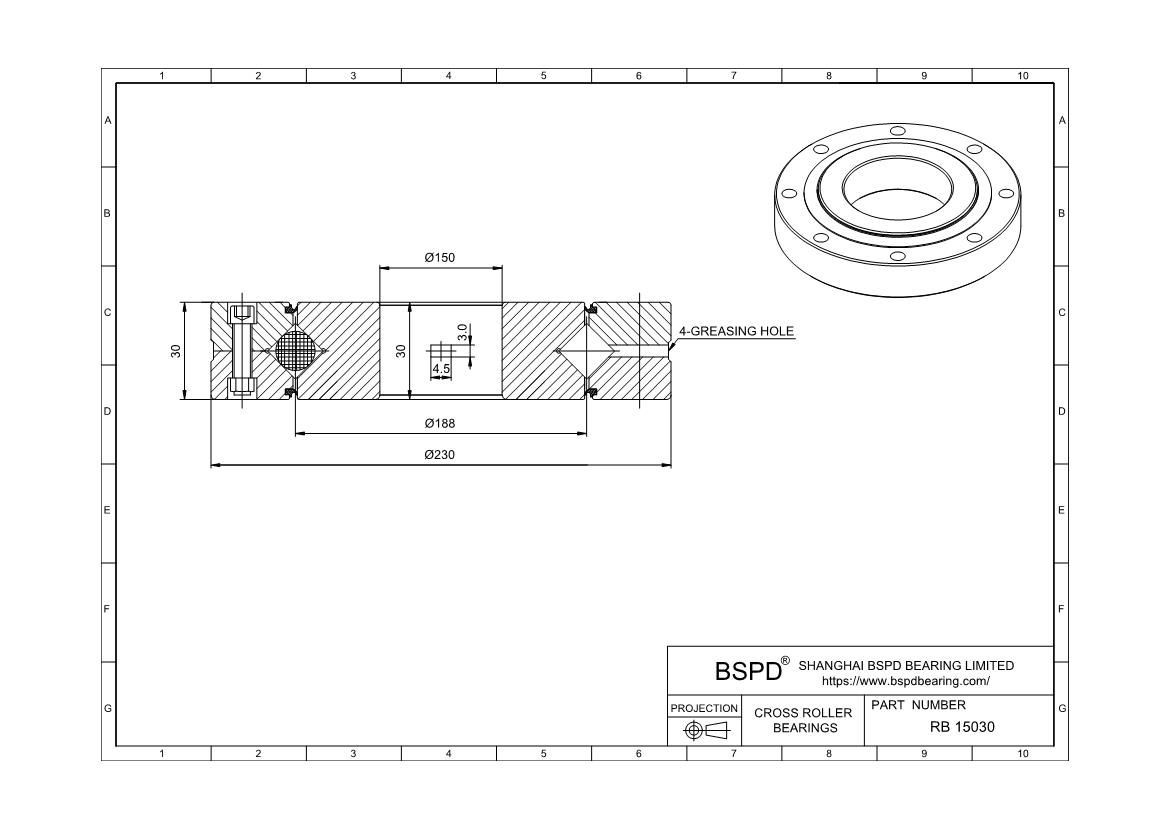

Dimensions: Bore (Inner) Diameter: 150 mm； Outer Diameter: 230 mm； Width (Thickness): 30 mm;

RB15030UU
REQUEST FOR QUOTE
* *
Send
Product Attributes
IKO Part Number CRB15030UU
THK Part Number RB15030UU
Bearing Type Roller
Roller Bearing Type Crossed
For Load Direction Combined Radial; Thrust; and Moment
Construction Single Row
Seal Type Sealed
Separator Full Complement
ABEC Rating ABEC-5 ABEC-7 ABEC-9
Ring Material Steel
Roller Material Steel
Shaft dia. mm 150
Mass(kg) 5.3
Bore Dia (d) 150
Outer Dia (D) 230
Width (B) 30
Greasing hole(d1)
r(min) 1.5
Shoulder height ds(max) 169
Shoulder height Dh(min) 211
Basic load rating (radial)C kN 100
Basic load rating (radial)Co kN 156
Lubrication Required
Shaft Mount Type Press Fit
Temperature Range 0 -230
RB15030UU
Print PDF
Request a 3D CAD Model if you need special bearings - design custom bearings
What are the types of Crossed Roller Bearings RB15030UU ? Crossed Roller TYPE Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:Negotiation
Price:Negotiation
  • Fast Delivery     √
  • Best Quality       √
  • Good Price        √
