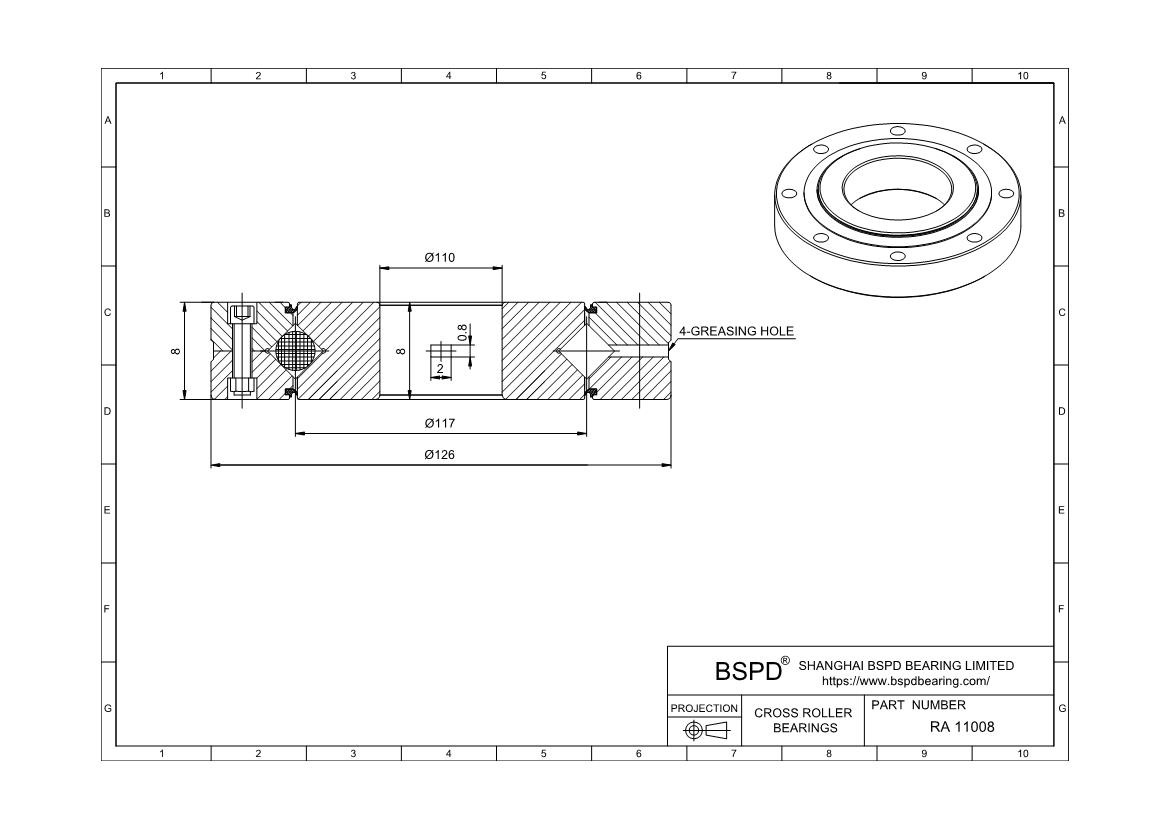

RA11008 Crossed Roller TYPE
Dimensions: Bore (Inner) Diameter: 110 mm； Outer Diameter: 126 mm； Width (Thickness): 8 mm;

REQUEST FOR QUOTE

Product Attributes

Part Number	RA11008
Bearing Type	Crossed Roller
Construction	Single Row
Seal Type	Open
ABEC Rating	ABEC-5 ABEC-7 ABEC-9
Shaft dia. mm	110
Mass(kg)	0.15
Bore Dia (d)	110
Outer Dia (D)	126
Width (B)	8
Greasing hole(a)	2
Greasing hole(b)	0.8
r(min)	0.5
Shoulder height ds(max)	113.5
Shoulder height Dh(min)	120.5
Basic load rating (radial)C kN	7.45
Basic load rating (radial)Co kN	15

Print PDF
Request a 3D CAD Model if you need special bearings - design custom bearings
