R9-63E3 Inch Size Slewing Rings
Dimensions: Bore (Inner) Diameter: 57.72"； Outer Diameter: 70.629"； Width (Thickness): 3.150";

REQUEST FOR QUOTE

Product Attributes

Specifications
Part Number	R9-63E3
Raceway Moment (ft-lbs)	1099000
Compressive Thrust(lbs)	836300
Weight(lbs)	903

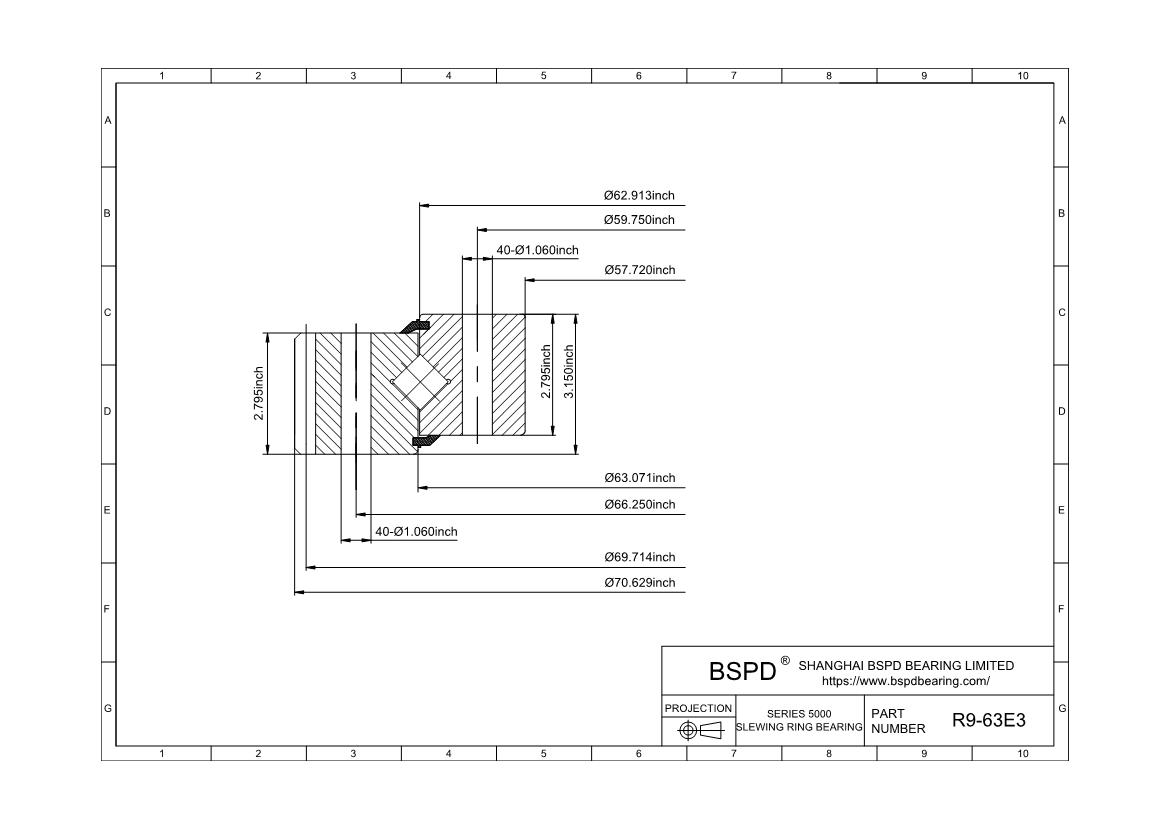

Outline Dimensions(inches)
OD	70.629
ID	57.72
OI	63.071
IO	62.913
HT	3.150
OH	2.795
IH	2.795
PD	69.714
DP	1.75
Mounting Holes
OBC	66.250
OU	1.06
No of OBC Holes	40
IBC	59.750
IU	1.06
No of IBC Holes	40
Gear Data
Tooth From 20	Stub
Gear Hardness(BHN)	250-300
F	2.795
NO of Teeth	122
Max.allow tang.tooth load(lbs)	28.300
