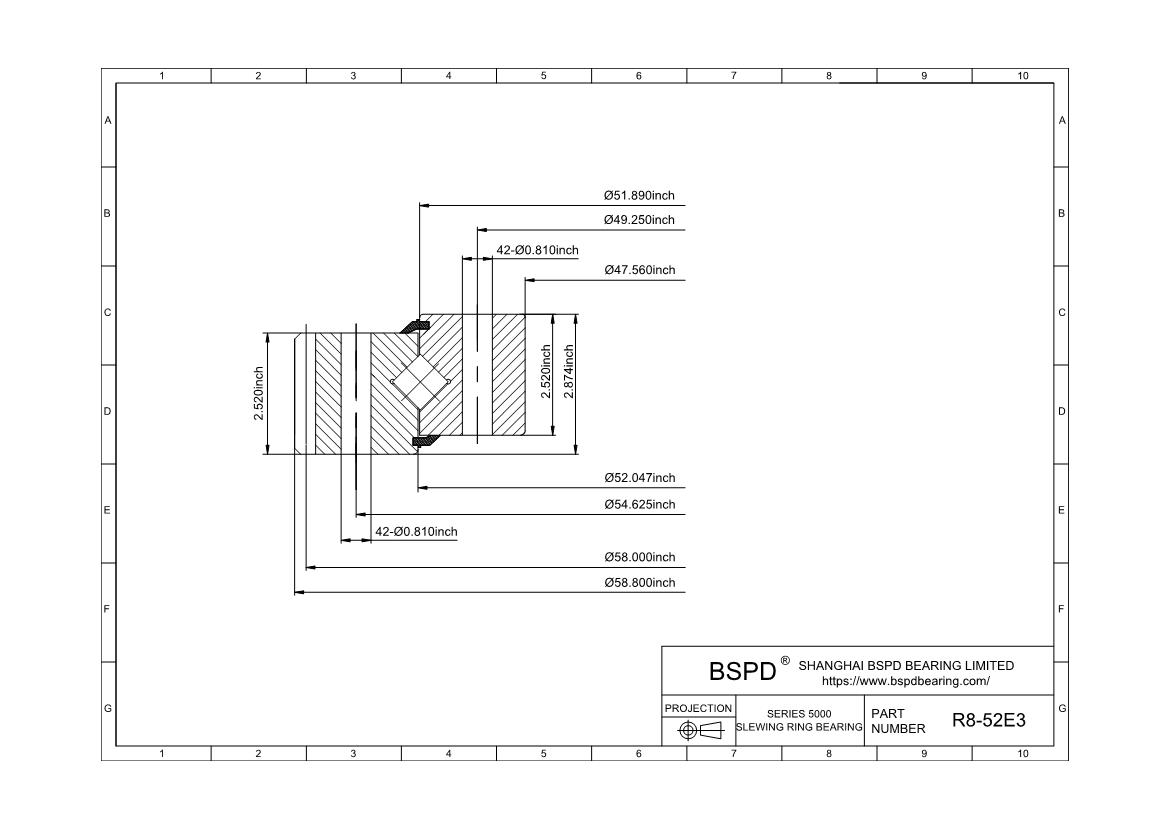

R8-52E3
Inch Size Slewing Rings
Dimensions: Bore (Inner) Diameter: 47.56"； Outer Diameter: 58.8"； Width (Thickness): 2.874";
REQUEST FOR QUOTE
Product Attributes
| Specifications | |
| Part Number | R8-52E3 |
| Raceway Moment (ft-lbs) | 685900 |
| Compressive Thrust(lbs) | 656500 |
| Weight(lbs) | 584 |
| Outline Dimensions(inches) | |
| OD | 58.800 |
| ID | 47.56 |
| OI | 52.047 |
| IO | 51.890 |
| HT | 2.874 |
| OH | 2.520 |
| IH | 2.520 |
| PD | 58.000 |
| DP | 2 |
| Mounting Holes | |
| OBC | 54.625 |
| OU | .81 |
| No of OBC Holes | 42 |
| IBC | 49.250 |
| IU | .81 |
| No of IBC Holes | 42 |
| Gear Data | |
| Tooth From 20 | Stub |
| Gear Hardness(BHN) | 250-300 |
| F | 2.520 |
| NO of Teeth | 136 |
| Max.allow tang.tooth load(lbs) | 18100 |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
