R8-49E3
Inch Size Slewing Rings
Dimensions: Bore (Inner) Diameter: 44.8"； Outer Diameter: 65.04"； Width (Thickness): 2.874";
REQUEST FOR QUOTE
Product Attributes
| Specifications | |
| Part Number | R8-49E3 |
| Raceway Moment (ft-lbs) | 617.400 |
| Compressive Thrust(lbs) | 618.300 |
| Weight(lbs) | 511 |

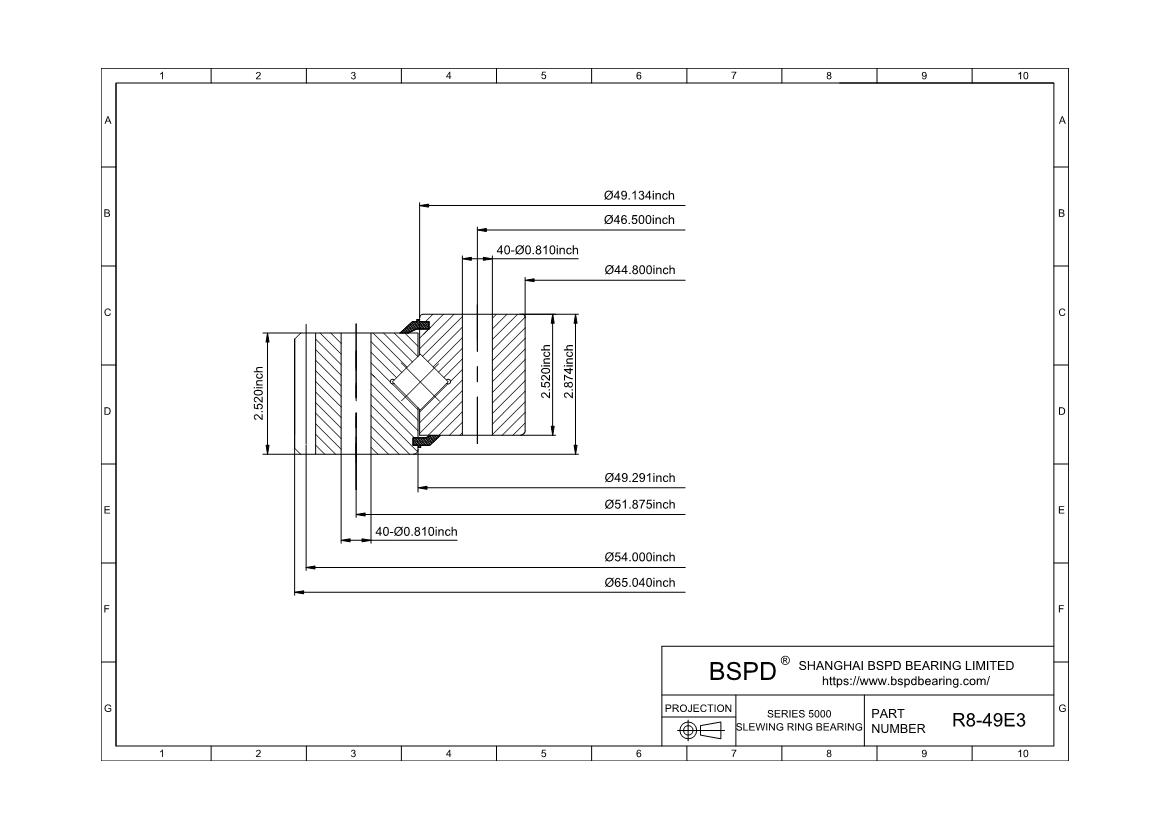

| Outline Dimensions(inches) | |
| OD | 65.040 |
| ID | 44.80 |
| OI | 49.291 |
| IO | 49.134 |
| HT | 2.874 |
| OH | 2.520 |
| IH | 2.520 |
| PD | 54.000 |
| DP | 2.5 |
| Mounting Holes | |
| OBC | 51.875 |
| OU | .81 |
| No of OBC Holes | 40 |
| IBC | 46.500 |
| IU | .81 |
| No of IBC Holes | 40 |
| Gear Data | |
| Tooth From 20 | Stub |
| Gear Hardness(BHN) | 250-300 |
| F | 2.520 |
| NO of Teeth | 136 |
| Max.allow tang.tooth load(lbs) | 18100 |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Slewing Bearings R8-49E3 ? Inch Size Slewing Rings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
